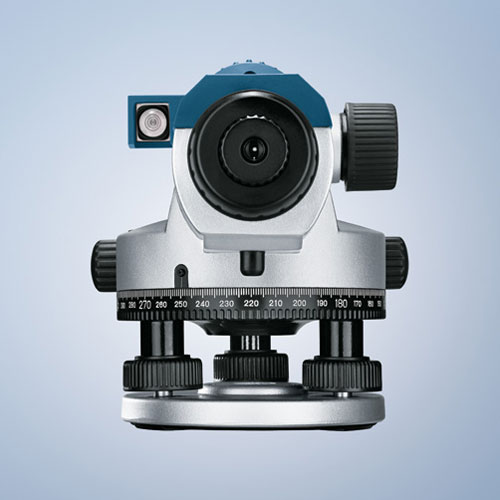

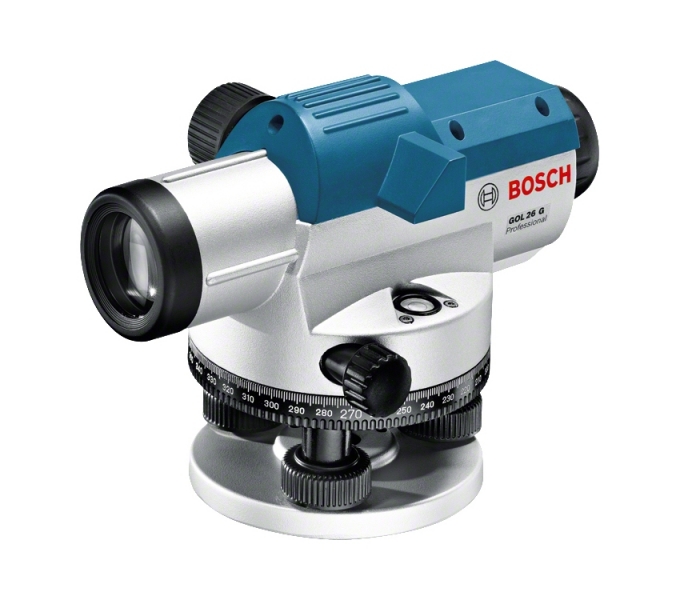

Bosch Auto Level GOL 26D GOL 26D

short info

Every aspect of the Bosch GOL 26D demonstrates how series Bosch are with getting their survey tools designed and built to meet the users requirements. The Bosch Site Level GOL 26 D is not just another level. The Bosch GOL 26D proof casing surrounds the very high quality 26x magnification optics that offers clear images of the levelling staff over long and short distances.

Model

GOL 26D

Origin

Indian

Make/ OEM

VERTEX

get a quote

  • Description

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New
    WORKING PRINCIPAL

OVERVIEW

Unique

Every aspect of the Bosch GOL 26D demonstrates how series Bosch are with getting their survey tools designed and built to meet the users requirements.

High Quality

The Bosch GOL 26 D is not just another level. The Site proof casing surrounds the very high quality 26x magnification optics that offers clear images of the levelling staff over long and short distances.

Accurate

The housing on the Bosch GOL 26D Automatic Level is solid with an easy 360 degree rotation plate with clear precise position marks. The base plate of the site level sits firmly on the Bosch Site tripod included with this kit.

Strong

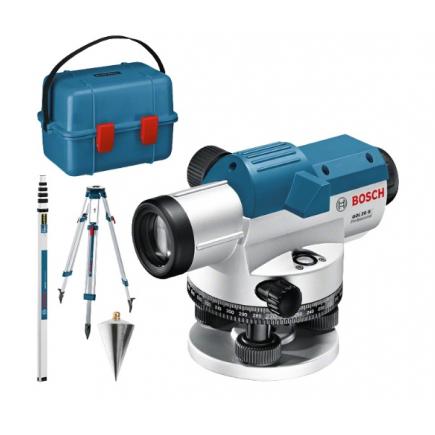

The site tripod is strong enough to be loaded used time and time again in all site environments offering a very stable platform for the Site Level. The Bosch 5 Meter levelling staff complements this excellent value package – The Bosch GOL 26 D Optical Site Level.


Related Searches

SPECIFICATIONS

Unit of measure 360 degrees
Magnification 26 x
Accuracy 1.6 mm at 30 m
Working range upto 100 m
Dust and splash protection IP 54
Tripod thread 5/8″
Operating temperature –10 to 50 °C
Storage temperature -20 to 70 °C
Weight, approx. 1.5 kg

FEATURES

• Designed for outdoor use due to sturdy metal housing with dust and splash protection (IP54)
• Robust design with built-in target collimator and integrated circular vial
• Compensator lock for safe transport
• Target collimator for rough alignment
• Penta prism makes it easy to read the circular vial
• Large focusing knob for easy alignment
• Fast aperture for excellent staff reading
• High precision (1.6 mm/30 m) over long distances
• Endless angle setting using knobs on both sides with friction-braked rotation
• Erect image

PRODUCT VIDEO

WORKING PRINCIPALNew
