BOD Incubator is designed for low temperature incubation and determination of Bio Chemical Oxygen Demand (B.O.D). The BOD Incubator comes with a double wall construction. The Inner chamber is made of richly anodized aluminum or highly polished stainless steel with with two / three removable perforated shelves.

Country Origin

Indian

Make / OEM

VERTEX

Model

VSLIC-E110

Brochure

Warranty

This Warranty covers the defects resulting from defective parts, materials or manufacturing, if such defects are revealed during the period of 12 months since the date of purchase.


All pictures shown are for illustration purpose only. actual product may vary due to product enhancement.

  • OVERVIEW

  • SPECIFICATIONS

  • FEATURES

  • VIDEO

  • DIMENSION

OVERVIEW

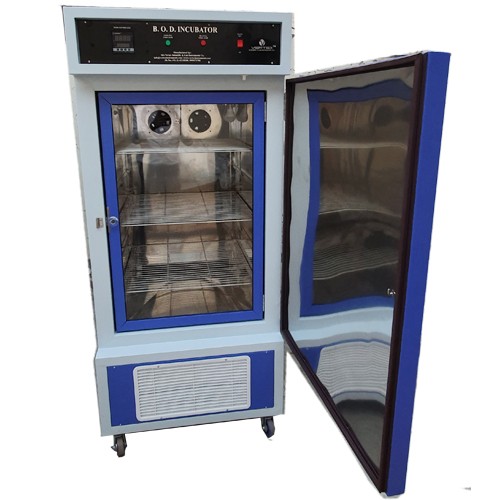

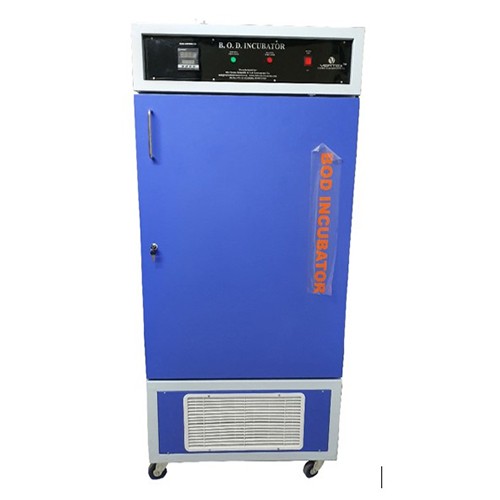

BOD Incubator is designed for low temperature incubation and determination of Bio Chemical Oxygen Demand (B.O.D). The BOD Incubator comes with a double wall construction. The Inner chamber is made of richly anodized aluminum or highly polished stainless steel with with two / three removable perforated shelves. The exterior chamber of the BOD Incubator is made of thick mild steel sheet duly finished in enamel paint. Outer double wall door is provided with magnetic gasket and lock & key arrangement. The inner door is made out of clear acrylic sheet allowing inspection of material in the chamber without disturbing the chamber temperature. Door operated inner illumination has been provided. The gap between walls of equipment are filled with glass wool for temperature insulation. The cabinet is mounted on castors. The temperature in the BOD Incubator is controlled by a sensitive thermostat from 5oC to 50oC ± 1oC. For lower temperature working, a standard cooling unit with sealed compressor with protective devices has been provided below the chamber for safe and efficient working. Heating arrangement has made within the chamber for higher temperature. Inner air circulating system is provided to achieve uniform temperature in the whole chamber. A control panel is provided with various indicators such as on off switch, L – shaped thermometer, etc. The BOD Incubator is supplied with cord & plug, etc. The equipment is workable on 220V AC 50 Hz single phase.

Details : Aluminum / SS Chamber sizes:
24″ x 18″ x 6″ – 4 cubic ft.
33″ x 20″ x 16.5″ – 6 cubic ft.
34.5″ x 22.5″ x 22.5″ -10 cubic ft.
36″ x 26″ x 23″ – 12 cubic ft.
27.5″ x 25.5″ x 35.5″ -15 cubic ft.

Optional accessories :

  • Timer 0.24 hours day night cycle.
  • Co2/air mixer nozzle is provided.
  • Internal illumination with 3 fluorescent tubes.
  • Digital temp. Indicator-cum-Controller.
  • Microprocessor PID digital temp. Indicator-cum-controller.
  • Automatic Voltage Stabilizer 3-5 KVA (recommended must.)

SPECIFICATIONS

BOD Incubator is designed for low temperature incubation and determination of Bio Chemical Oxygen Demand (B.O.D). The BOD Incubator comes with a double wall construction. The Inner chamber is made of richly anodized aluminum or highly polished stainless steel with with two / three removable perforated shelves. The exterior chamber of the BOD Incubator is made of thick mild steel sheet duly finished in enamel paint. Outer double wall door is provided with magnetic gasket and lock & key arrangement. The inner door is made out of clear acrylic sheet allowing inspection of material in the chamber without disturbing the chamber temperature. Door operated inner illumination has been provided. The gap between walls of equipment are filled with glass wool for temperature insulation. The cabinet is mounted on castors. The temperature in the BOD Incubator is controlled by a sensitive thermostat from 5oC to 50oC ± 1oC. For lower temperature working, a standard cooling unit with sealed compressor with protective devices has been provided below the chamber for safe and efficient working. Heating arrangement has made within the chamber for higher temperature. Inner air circulating system is provided to achieve uniform temperature in the whole chamber. A control panel is provided with various indicators such as on off switch, L – shaped thermometer, etc. The BOD Incubator is supplied with cord & plug, etc. The equipment is workable on 220V AC 50 Hz single phase.

Details : Aluminum / SS Chamber sizes:
24″ x 18″ x 6″ – 4 cubic ft.
33″ x 20″ x 16.5″ – 6 cubic ft.
34.5″ x 22.5″ x 22.5″ -10 cubic ft.
36″ x 26″ x 23″ – 12 cubic ft.
27.5″ x 25.5″ x 35.5″ -15 cubic ft.

Optional accessories :

  • Timer 0.24 hours day night cycle.
  • Co2/air mixer nozzle is provided.
  • Internal illumination with 3 fluorescent tubes.
  • Digital temp. Indicator-cum-Controller.
  • Microprocessor PID digital temp. Indicator-cum-controller.
  • Automatic Voltage Stabilizer 3-5 KVA (recommended must.)

FEATURES

BOD Incubator is designed for low temperature incubation and determination of Bio Chemical Oxygen Demand (B.O.D). The BOD Incubator comes with a double wall construction. The Inner chamber is made of richly anodized aluminum or highly polished stainless steel with with two / three removable perforated shelves. The exterior chamber of the BOD Incubator is made of thick mild steel sheet duly finished in enamel paint. Outer double wall door is provided with magnetic gasket and lock & key arrangement. The inner door is made out of clear acrylic sheet allowing inspection of material in the chamber without disturbing the chamber temperature. Door operated inner illumination has been provided. The gap between walls of equipment are filled with glass wool for temperature insulation. The cabinet is mounted on castors. The temperature in the BOD Incubator is controlled by a sensitive thermostat from 5oC to 50oC ± 1oC. For lower temperature working, a standard cooling unit with sealed compressor with protective devices has been provided below the chamber for safe and efficient working. Heating arrangement has made within the chamber for higher temperature. Inner air circulating system is provided to achieve uniform temperature in the whole chamber. A control panel is provided with various indicators such as on off switch, L – shaped thermometer, etc. The BOD Incubator is supplied with cord & plug, etc. The equipment is workable on 220V AC 50 Hz single phase.

Details : Aluminum / SS Chamber sizes:
24″ x 18″ x 6″ – 4 cubic ft.
33″ x 20″ x 16.5″ – 6 cubic ft.
34.5″ x 22.5″ x 22.5″ -10 cubic ft.
36″ x 26″ x 23″ – 12 cubic ft.
27.5″ x 25.5″ x 35.5″ -15 cubic ft.

Optional accessories :

  • Timer 0.24 hours day night cycle.
  • Co2/air mixer nozzle is provided.
  • Internal illumination with 3 fluorescent tubes.
  • Digital temp. Indicator-cum-Controller.
  • Microprocessor PID digital temp. Indicator-cum-controller.
  • Automatic Voltage Stabilizer 3-5 KVA (recommended must.)

PRODUCT VIDEO

DIMENSION

Length (Inch) Width (Inch) Height (Inch)
