Automatic Compression Testing Machine 250kN VSLIC-C289SA

short info

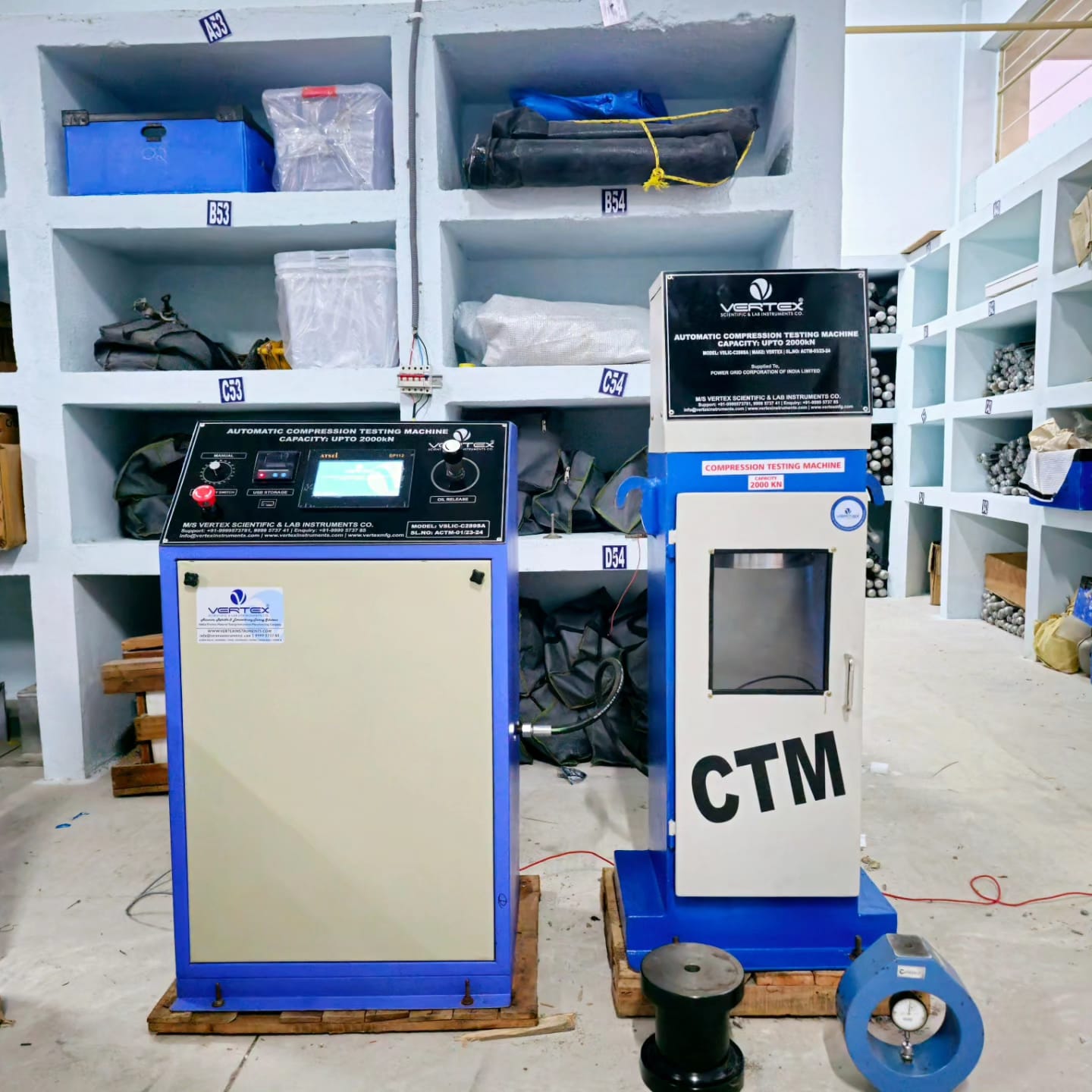

VERTEX Automatic Compression Testing Machine is capable of conducting compression tests on concrete specimens and allied products. It is a state of the art machine in which loading is controlled automatically through a combination of advance electronic and hydraulic system. The complete system consists of Load frame, Hydraulic pumping unit & Microprocessor based Touch Screen.

Automatic Operation: Minimal user input required; automatic rapid piston approach, test speed adjustment, and motor stop after specimen failure. Adjustable pace rate (1 kN/sec to 10 kN/sec) with dual-stage pump for fast and precise execution. PC software for two-way communication, result storage, and report printing.

Standard

EN 12390‑4, ASTM C39, AASHTO T22, IS : 14858 (2000), IS:6441(P-5). IS:2185(P-3),ASTM C1386, ASTM C495/C495M, EN 772-1, EN 12602, ISO 1920-10, BS EN 771-4, JIS A 5416

Model

VSLIC-C289SA

Origin

Indian

Make/ OEM

VERTEX



  • OVERVIEW

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New
    WORKING PRINCIPAL

OVERVIEW

Application :

This machine is particularly useful for testing compressive strength of AAC Block, Light weight insulating concrete, low strength Cement mortar specimen. This machine automatically maintains required rate of loading as prescribed by the various test standards.

Automatic Test Execution:

Once the machine has been switched on, the specimen positioned and centered, the only required operations are

  1. Set test parameters ‑ including load rate:
  2. Press the start button
  3. Tighten the pressure valve
  4. The machine automatically: starts the rapid approach; switches to the test speed once the specimen comes into contact with the upper platen; automatically stops the motor upon specimen failure
  5. Release the pressure valve manually
  6. The test execution conforming to Standards can be easily proved.
  7. Working on 240V, 50‑60Hz, single phase.
  8. Dual stage pump assuring fast piston approach and precise test execution
  9. Test execution conforming to EN 12390‑4, ASTM C39, AASHTO T22
  10. Controllable pace rate from 0.5 kN/Sec to 10 kN/Sec.
  11. Auto stop after completion of each test.
  12. Soft platen‑to‑specimen contact and smooth load rate control from the very beginning of the ramp

Frame:

  1. Four column high stiffness welded frame tested for stability.
  2. Heavy duty spherical seat , allowing initial free alignment at the initial contact with the specimen and automatic jamming up to the end of test.
  3. Surface hardness of platen is 55 HRC, flatness tolerance 0.03 mm. Traceable certificate of surface hardness available on request.
  4. Piston travel limit switch
  5. Emergency stop button

Salient features of data manager PC software:

  1. Two way communication i.e machine operates from computer and from the touch screen controller both (Stat, stop, save data and save graph)
  2. Results directly saved in excel file
  3. Graph also saved in excel file
  4. Capable to save customer name, other details of customer, ageing of cube moulds, identification mark of the cube mould, date and time of testing
  5. Capable to print direct report from the computer
  6. Capable to select different test parameters like pace rate, sample size and area from the computer (software)

SPECIFICATIONS

Capacity 250 kN
Platen size in mm 150 dia mm
Ram Dia in mm 90 mm
Ram Travel in mm 50 mm
Vertical daylight in mm 200 mm
Horizontal daylight in mm 200 mm
Least count 0.1 Kn or better
Load indication and Control 7″ Coloured touch screen controller
Accuracy ± 1%
Pace rate controlling accuracy 10%
Pumping Motorized
Pump Speed Dual speed
Motor Stepper Motor
Reading Digital
Release valve operation Required
Auto stop after failure of specimen Available, machine stops after completion of test
Auto Release of Pressure after specimen failure Manual
Calculation of result Automatic
Holding of Max.Load Yes
Pace Rate or Rate of Loading indication Yes
Operator skill to control Pace Rate Not Required
Bar Graph Yes
Multi Channel operation 3 channel operation possible, flexural and compression frame can be attached
Saving of records Possible-10 reading
Real time graph Available, on controller itself
Printer interface (Direct connectivity to printer w/o computer) In built
Flexural attachment Possible, all calculations will be made automatically
Splitting Tensile Test Possible, all calculations will be made automatically
Auto internal Calibration without proving ring Yes
Piston over travel safety cut off Available
Over load safety cut off Yes
Shot circuit protection Yes
Overall Dimensions
Weight approx in kg 400 Kg.
Power Supply 230V AC, Single phase
Standard Supply Spacers – 3 nos.
Pen drive
2.5 meter cord wire with plug
Pumping unit
Loading unit
Optional fittings at extra cost PC software
Displacement controlled operation
Modulus of Elasticity Calculation (MOE) attachment
Split tensile test attachment
Flexural test attachment
LAN Connectivity

FEATURES

Salient features of data manager PC software:

  1. Two way communication i.e machine operates from computer and from the touch screen controller both (Stat, stop, save data and save graph)
  2. Results directly saved in excel file
  3. Graph also saved in excel file
  4. Capable to save customer name, other details of customer, ageing of cube moulds, identification mark of the cube mould, date and time of testing
  5. Capable to print direct report from the computer
  6. Capable to select different test parameters like pace rate, sample size and area from the computer (software)
