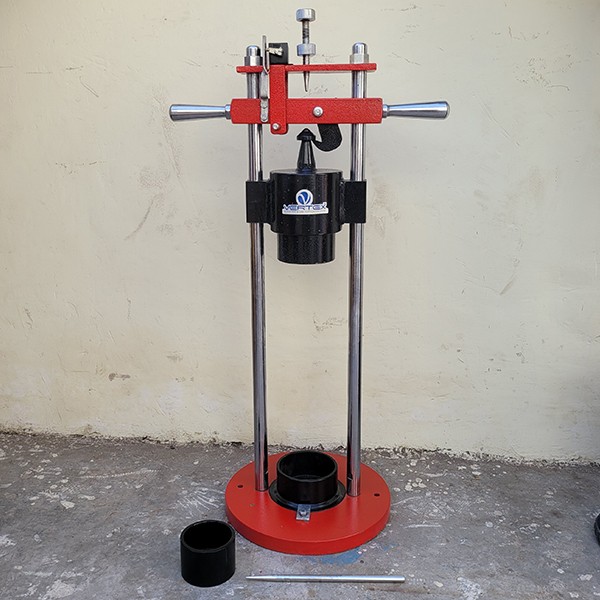

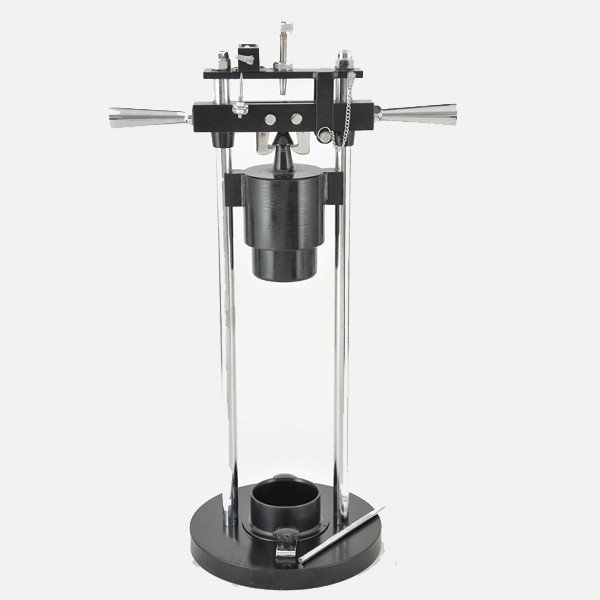

Aggregate Impact Tester With Blow Counter VSLIC-A114

short info

Aggregate Impact Tester With Blow Counter Complete with a cylindrical cup, 102 mm dia X 50 mm depth, one measure 75 mm dia X 50 mm deep and a tamping rod of circular cross section 10 mm in diameter and 230 mm long, rounded at one end. AS PER IS: 2386 (Part – IV).

Standard

IS 2386 (PART IV) 9377 & BS 812:112

Model

VSLIC-A114

Origin

Indian

Make/ OEM

VERTEX

Brochure

DOWNLOAD

get a quote

  • DESCRIPTION

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New
    WORKING PRINCIPAL
  •  New
    REVIEW

OVERVIEW

For determining the aggregate impact value of coarse aggregate. Consists of base weighing between 20-30 kg with a lower surface of not less than 30 cm and support columns to from a rigid frame work around the quick release trigger mechanism to ensure an effective free fall of the hammer during test.

The free fall can be adjusted through 380 ± 5.0 mm.

The hammer is provided with a locking arrangement.

A metal tup(hammer) weighing 13.5 to 14.0 kg, the lower end of in cylindrical shape, 100 mm in diameter and 5 cm long with a 2 mm chamfer at the lower edge and case hardened.

Complete with a cylindrical cup, 102 mm dia X 50 mm depth, one measure 75 mm dia X 50 mm deep and a tamping rod of circular cross section 10 mm in diameter and 230 mm long, rounded at one end. AS PER IS: 2386 (Part – IV).


Related Searches

SPECIFICATIONS

For determining the aggregate impact value of coarse aggregate. Consists of base weighing between 20-30 kg with a lower surface of not less than 30 cm and support columns to from a rigid frame work around the quick release trigger mechanism to ensure an effective free fall of the hammer during test.

The free fall can be adjusted through 380 ± 5.0 mm.

The hammer is provided with a locking arrangement.

A metal tup(hammer) weighing 13.5 to 14.0 kg, the lower end of in cylindrical shape, 100 mm in diameter and 5 cm long with a 2 mm chamfer at the lower edge and case hardened.

Complete with a cylindrical cup, 102 mm dia X 50 mm depth, one measure 75 mm dia X 50 mm deep and a tamping rod of circular cross section 10 mm in diameter and 230 mm long, rounded at one end. AS PER IS: 2386 (Part – IV).

FEATURES

For determining the aggregate impact value of coarse aggregate. Consists of base weighing between 20-30 kg with a lower surface of not less than 30 cm and support columns to from a rigid frame work around the quick release trigger mechanism to ensure an effective free fall of the hammer during test.

The free fall can be adjusted through 380 ± 5.0 mm.

The hammer is provided with a locking arrangement.

A metal tup(hammer) weighing 13.5 to 14.0 kg, the lower end of in cylindrical shape, 100 mm in diameter and 5 cm long with a 2 mm chamfer at the lower edge and case hardened.

Complete with a cylindrical cup, 102 mm dia X 50 mm depth, one measure 75 mm dia X 50 mm deep and a tamping rod of circular cross section 10 mm in diameter and 230 mm long, rounded at one end. AS PER IS: 2386 (Part – IV).
