Advanced Laboratory Pulveriser Test Machine VSLIC-A123

short info

Pulveriser Test Machine is Designed for grinding materials to produce fine mesh samples Ideal for use in Cement and Chemical Industries.

Standard

INDIAN STANDARD

Model

VSLIC-A123

Origin

Indian

Make/ OEM

VERTEX

get a quote

  • Description

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New
    WORKING PRINCIPAL

OVERVIEW

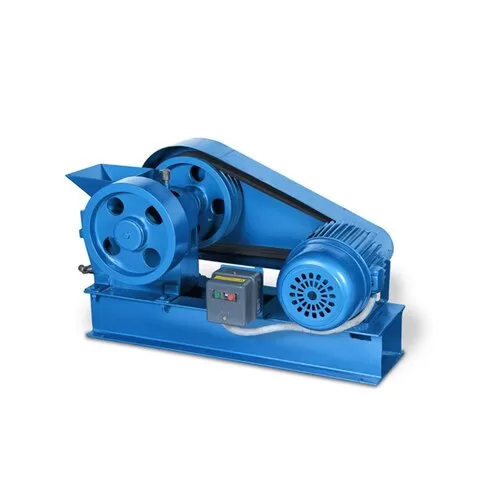

Laboratory pulverizer with L&T Starter is a disc type grinder, designed to grind virtually any material to produce a fine mesh sample in one operation.


Related Searches

SPECIFICATIONS

Brief construction details:

  1. It is a self contained grinder, with a rotary disc, having a planetary movement in a vertical plane.
  2. This feature gives added life to the moving parts and produces a sample of uniform fineness.
  3. Grinding is done between two discs, one of which is stationary and the other revolving eccentrically at
  4. high speed.
  5. The discs are made from heat treated mechanized metal.
  6. With the help of a convenient hand wheel, the size of the final product can be adjusted.
  7. This can be done, even while the machine is in operation.
  8. A self locking device holds the hinged grinding chamber in place and affords easy and quick access to it, for removal of ground samples & for cleaning.
  9. The Pulverizer has a capacity of reducing about 50 gram of Quartz type sample to 100 mesh in about minute.
  10. The Pulverizer is supplied complete with a 3 H.P. Motor, a starter, “V” Belt pulley, drive and mounting wires for 440 Volts, 3 phase A.C. 50 Hz.

Note: The Recommended accessories offered here are to be considered as per your application and availability of items at your end. It is not MANDATORY

FEATURES

Technical Specification

  • Pulveriser Self-contained grinder with a rotating disc having a planetary movement in a vertical plane.
  • Reduces about 450g quartz type material to 100 mesh in one minute.
  • Dia. of grinding wheel: 175mm.
  • Material of grinding wheel: High Carbon Steel having 53-60 HRC hardness.
  • Input of material: 6mm.
  • Suitable for operation with 440V, Three Phase, A.C. supply.
  • V-belt pulley drive and mounting.
  • Disc diameter: 175mm.
  • Maximum feed Size: 8mm (approx) size of finished.
  • Product : 72 mesh (212 microns).
  • The pulverizer is supplied complete with a 3 H.P. motor.
  • starting switch.
