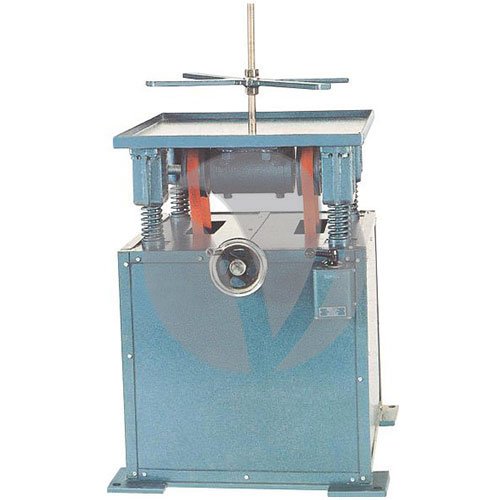

Vibrating Table (closed body) VSLIC-C243B

short info

This is the Vibrating Table(close body). It is designed to carry a load of 140 kg. The apparatus consists of a motor fitted with a variable pitch pulley housed in a cabinet.

Standard

EN 12350-6, 7, 12390-2, 13286-50

Model

VSLIC-C243B

Origin

Indian

Make/ OEM

VERTEX

get a quote

  • Description

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New
    WORKING PRINCIPAL

OVERVIEW

The vibrations are imparted by means off-balance masses rotating on a shaft of a vibrator clamped to the underside of the tabletop. The tabletop is 500 x 500 mm and has stops along its edges to prevent moulds from walking off the table during vibration. A cross arm adjustable on a vertical rod at the center of the table is provided to hold the moulds while operating the between a maximum of 3600 vibrations down to 2600 vibration per minute. A speed regulation handle is provided for increasing or decreasing frequency. A switch is provided for starting the motor. Suitable for an operator on 230 Volts, A.C. Single Phase, 50 Cycles.

Tabletop size : 750 x 750 mm 1000 x 1000 mm also available at an extra cost. Both models operate on 440 volts, A.C. Three Phase


Related Searches

SPECIFICATIONS

A cross arm adjustable on a vertical rod at the center of the table is provided to hold the moulds while operating the between a maximum of 3600 vibrations down to 2600 vibration per minute. A speed regulation handle is provided for increasing or decreasing frequency. A switch is provided for starting the motor. Suitable for the operator on 230 Volts, A.C. Single Phase, 50 Cycles.



FEATURES

PRODUCT VIDEO

WORKING PRINCIPALNew
