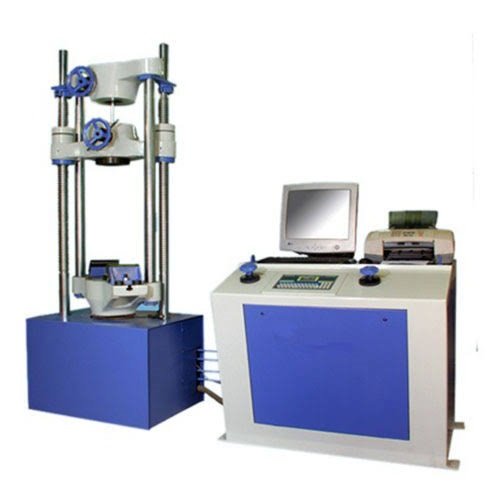

Universal Testing Machine-10kN To 100kN VSLIC-764-1

short info

VERTEX Electronic Universal Testing Machine-10kN To 100kN is designed for testing metals and other materials under tension, compression bending, transverse, and shear loads. Hardness tests on metals can also be conducted.

Standard

As Per ASTM Standard

Model

VSLIC-764-1

Origin

Indian

Make/ OEM

VERTEX

get a quote

  • Description

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New
    WORKING PRINCIPAL

OVERVIEW

The operation of the machine is by hydraulic transmission of load from the test specimen through pressure transducer to a separately housed load indicator. The system is ideal since it replaces transmission of load through levers and knife edges, which are prone to wear and damage due to shock on the rupture of test pieces.


Related Searches

SPECIFICATIONS

The load is applied by a hydrostatically lubricated ram. The main cylinder pressure is transmitted to the pressure transducer housed in the control panel. The transducer gives the signal to the electronic display unit corresponding to the load exerted by the main ram. Simultaneously the digital electronic fitted on the straining unit gives the mechanical displacement to the electronic display unit. Both the signals are processed by the microprocessor and load and displacement are displayed on the digital readouts simultaneously.

FEATURES

Features :

  • Loading accuracy as high as + 1%.
  • Straining at variable speeds to suit a wide range of materials.
  • Printer & PC graphs enable to study of the behavior of the materials.
  • Motor-driven threaded columns for quick effortless adjustment of middle crosshead to facilitate rapid fixing of the test specimens.
  • Continuous roll autographic recorder supplied as standard to enable the study of the behavior of materials
  • Simplicity in reading because of digital readouts.
  • Wide range of standard and special accessories, including load stabilizer.
  • Easy change from plain to threaded and screwed specimens.
  • Large effective clearance between columns enables the testing of standard specimens as well as structures.
  • Simple controls for ease of operation.
  • The robust straining frame of extremely rigid construction.
  • Safe operation ensured by means of safety devices.
  • Fully enclosed and protected pressure transducer.
  • RS 232 serial port to transfer data to a computer for analysis/storage evaluation etc.
  • Manual control & release valve operation.
