Calibration Certificate

Ultra Low Temperature Cabinet-

Brand: Vertex Brand

IS Standard :

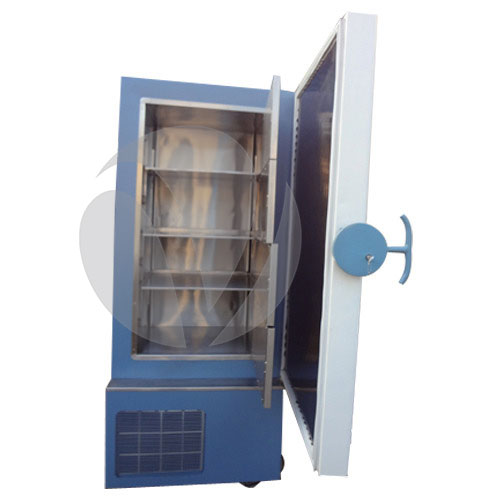

Ultra Low Temperature Cabinet

By keeping track of current market developments, we bring forth an impeccable gamut of Ultra Low Temperature Cabinet. Offered cabinet is accessible in several specifications according to the needs of customers. The offered cabinet is developed with utmost care by using finest material & modern techniques in accordance with the set norms. In addition, our cabinet is designed to preserve research specimen or samples at a very low temperature.

Features:

  • Available in horizontal or vertical designs
  • Sturdy design
  • Less maintenance
  • Long functional life



[]
1 Step 1
Vertex Scientific & Lab Instruments Co.
ASK FOR PRICE
Nameyour full name
Company Nameyour company name
Contact No.Telephone/Mobile
Mobile No.your mobile no.
Cityyour city name
RequirementProduct details
0 / 200
Previous
Next

Standard Specifications:

  • Model: Floor type-Upright/Chest type
  • Temperature range: Ambient to -20° C/Ambient to -40° C/-80° C to -20° C
  • Temperature control accuracy: +/- 2° C
  • Ambient Temp. Recommendation < 30.0° C
  • Display resolution & Control Sensitivity of 0.1° C
  • Control Readout for Actual and Set point
  • Digital Microprocessor based PID, temperature indicator cum controller
  • Temperature Sensor Pt 100 (RTD)-3 wire. Class A.
  • CFC free Single stage refrigeration system for Cooling up to -40° C
  • CFC free Double stage (Cascade) refrigeration system for Cooling below -40° C
  • Deviation alarms for temperature high/low, Power failure, door open, HP/LP open. (Audio & Visual with mute function)
  • Inner Chamber made of Stainless steel 304 grade dully polished
  • Outer made of Mild steel CRCA sheet with powder coating
  • Double walled, fully front opening, inner lined with SS, Handle & lock for door
  • Magnetic type Gasket with Single/Double/Triple layer-depends on minimum temperature
  • Hermetically sealed Emerson make compressor
  • Fin and tube air cooled condenser
  • CFC Free refrigerants – R134a/R404a & Suva 95
  • Battery back up for Temperature Display, whenever power fails
  • Separate sub doors made of SS 304 grade for each compartment
  • High density PUF – Poly Urethane Foam Insulation to avoid temperature loss.
  • Shelves-Adjustable type, no. of trays according chamber capacity
  • Wheels for easy moving with front locking facility
  • Power supply-Single Phase-230 VAC, 50 Hz

Optional Features:

  • Up to -86° C temperature
  • Fully Stainless steel
  • Seven days (Weekly) chart recorder with battery back up
  • Voltage Stabilizer for refrigeration system
  • NABL Certified Calibration Certificate
  • PC interface through RS232/485 Communication module for data logging
  • Deep Freezer also available in different sizes as per customer requirements.
