short info

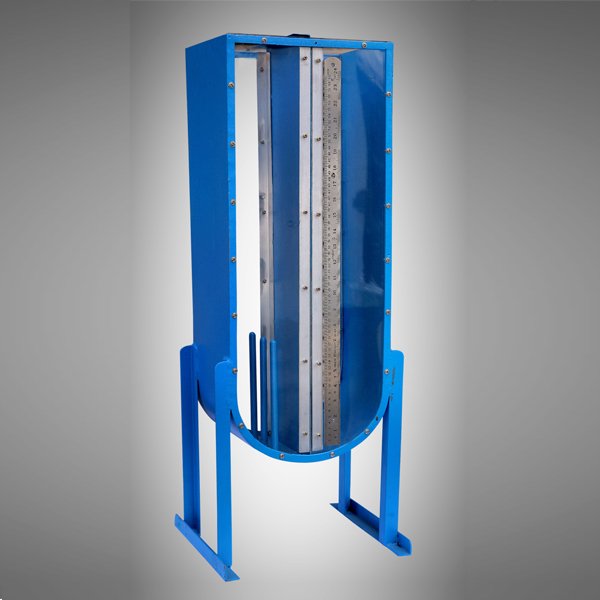

U Box Test on Self Compacting Concrete for Workability is used to measure the filing ability of self-compacting concrete. The apparatus consists of a vessel that is divided by a middle wall into two compartments; an opening with a sliding gate is fitted between the two sections.

Standard

ASTM C1621

Model

VSLIC-C212

Origin

Indian

Make/ OEM

VERTEX



  • OVERVIEW

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New
    WORKABILITY

OVERVIEW

U Shape Box is used to determine the confined flowability and the capacity of SCC concrete to flow within confined space. The box is made of a steel frame consisting of three bars.

In this test, the degree of compatibility can be indicated by the height that the concrete reaches after flowing through an obstacle. The quality of the concrete can be judged by the height reached.

SPECIFICATIONS

Technical Specifications

Brand Vertex
Material Mild Steel
Capacity 14 liter
Measuring scale 0 to 600 mm
Usage Concrete test
Dimensions 250x250x710 mm

FEATURES

The equipment consists of the following replaceable parts:

  • VSLIC-C212A     :Bucket capacity of 14ltr        1NO.
  • VSLIC-C212B     :Measuring scale 0-60mm    1NO.
  • VSLIC-C212C     :sprit level.                                1NO.
  • VSLIC-C212D     :stop watch with accuracy of 0.1 second        1NO.
