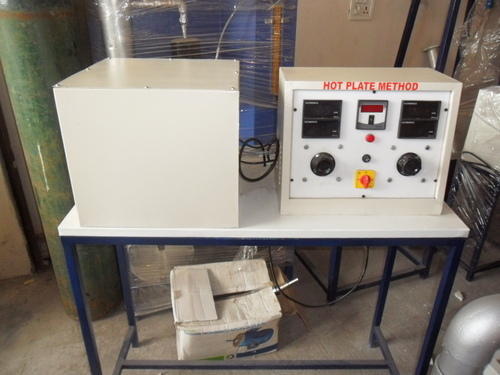

The set-up is designed to determine Thermal Conductivity of Insulating Slab. The apparatus consists of the main central heater and ring guard heater, sandwiched between the specimens. Cooling plates are provided on either side of the specimen. Two identical specimens are clamped between the heater ensures unidirectional heat flow through a specimen. The whole assembly is kept in a chamber and insulated by ceramic wool insulation around the set-up.

Ref. Standard

India Government

Country Origin

Indian

Make / OEM

VERTEX

Model

VSLIC-HM09

Warranty

This Warranty covers the defects resulting from defective parts, materials or manufacturing, if such defects are revealed during the period of 12 months since the date of purchase.


All pictures shown are for illustration purpose only. actual product may vary due to product enhancement.

  • OVERVIEW

  • SPECIFICATIONS

  • FEATURES

  • VIDEO

  • DIMENSION

OVERVIEW

The set-up is designed to determine Thermal Conductivity of Insulating Slab. The apparatus consists of main central heater and ring guard heater, sandwiched between the specimens. Cooling plates are provided on the either side of the specimen. Two identical specimens are clamped between heater ensures unidirectional heat flow through specimen. The whole assembly is kept in chamber and insulated by ceramic wool insulation around the set-up.

Experiments:

  • Determination of Thermal conductivity of insulating Material in the form of slab
  • Study of variation of thermal conductivity of the material with temperature

Features:

  • Pipes1st: Heat pipe made of stainless steel.
  • Pipes 2nd: Made of Copper.
  • Pipes 3rd: Made of Stainless steel.
  • Heat Sink: Material Stainless steel.
  • Working fluid in heat pipe: Distilled water.
  • Heaters: Nichrome Wire Band Type
  • The whole set-up is ingeniously designed and schematically arranged on a powder-coated rigid structure

SPECIFICATIONS

The set-up is designed to determine Thermal Conductivity of Insulating Slab. The apparatus consists of main central heater and ring guard heater, sandwiched between the specimens. Cooling plates are provided on the either side of the specimen. Two identical specimens are clamped between heater ensures unidirectional heat flow through specimen. The whole assembly is kept in chamber and insulated by ceramic wool insulation around the set-up.

Experiments:

  • Determination of Thermal conductivity of insulating Material in the form of slab
  • Study of variation of thermal conductivity of the material with temperature

Features:

  • Pipes1st: Heat pipe made of stainless steel.
  • Pipes 2nd: Made of Copper.
  • Pipes 3rd: Made of Stainless steel.
  • Heat Sink: Material Stainless steel.
  • Working fluid in heat pipe: Distilled water.
  • Heaters: Nichrome Wire Band Type
  • The whole set-up is ingeniously designed and schematically arranged on a powder-coated rigid structure
