quick info

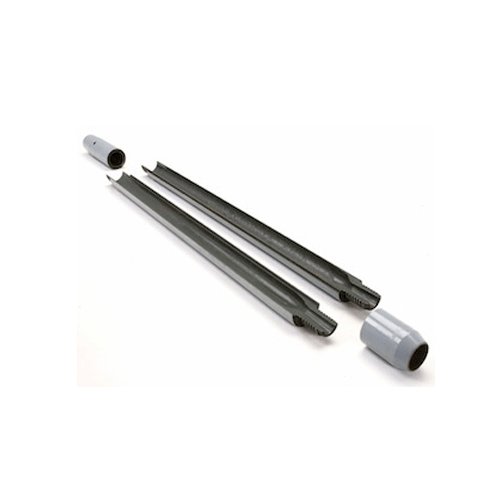

Split Spoon Sampler with Liner is used for the Standard Penetration Test.

Country Origin

Indian

Make / OEM

VERTEX

Model

VSLIC-S204

Warranty

This Warranty covers the defects resulting from defective parts, materials or manufacturing, if such defects are revealed during the period of 12 months since the date of purchase.


All pictures shown are for illustration purpose only. actual product may vary due to product enhancement.

  • OVERVIEW

  • SPECIFICATIONS

  • FEATURES

  • VIDEO

  • DIMENSION

OVERVIEW

For determining penetration resistance (N Value) of soil which can be related to unconfined Compressive strength, Penetration resistance (N Value) of soil is determined by giving a number of blows with a 65 kg.

SPECIFICATIONS

The sampler is made from a steel tube split lengthwise and held together by a head fitted with a ball check valve and a hardened steel shoe of inside cutting edge of 35 mm dia. The sampler is 35 mm I.D. and 50.8 mm in outer diameter and 508 mm long.

FEATURES

PRODUCT VIDEO

DIMENSION

Length (Inch) Width (Inch) Height (Inch)
