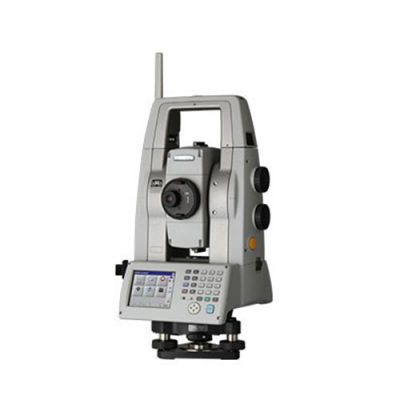

Featuring a wide array of innovative technologies, the NET AXII 0.5″ and NET AXII 1″ total stations offer superior performance in angle and distance measurement as well as reliable robotic functionality.

[wpdm_package id='6570']
[vcex_divider color=”#eaeaea”]

The NET ensures dramatic enhancement in precision and productivity in all applications such as surveying, engineering, construction, monitoring and 3D industrial measurement.

0.5” / 1” Angular Accuracy
Exclusive Reflector Prescan technology*
0.5 mm Ultra High-precision Distance Measurement
Auto-Pointing Accuracy of 1″
Laser Option for Tunneling
IP65 Enhanced Durability for Long-term Installations

[WPCR_INSERT POSTID="ALL" NUM="5" PAGINATE="1" PERPAGE="5" SHOWFORM="1" HIDEREVIEWS="0" HIDERESPONSE="0" SNIPPET="" MORE="" HIDECUSTOM="0" ]

NET05AXII
Angle Measurement.5″
Rotation Speed Absolute encoder scanning. Both circles adopt diametrical detection.
Distance Measurement (Single Prism) 3,500m (11,480ft.)
Distance Measurement (Reflectorless) 100m (328ft.)
Accuracy (Single Prism) 0.8mm + 1ppm
Accuracy (Reflectorless) 1mm + 1ppm
Up to 200m (656ft.) range.
Display 3.5in. TFT QVGA backlit color LCD Touch Screen
Auto-Point Range (Single Prism) 1.3 to 1,000m (4.3 to 3,280ft.)
Auto-Point Accuracy (Single Prism) 1” (0.3mgon) (1mm@200m)
Auto-Pointing accuracy is verified using the methods specified by ISO 17123-3.
NET1AXII
Angle Measurement 1″
Rotation Speed Absolute encoder scanning. Both circles adopt diametrical detection.
Distance Measurement (Single Prism) 3,500m (11,480ft.)
Distance Measurement (Reflectorless) 400m (1,310ft.)
Accuracy (Single Prism) 1mm + 1ppm
Accuracy (Reflectorless) 2mm + 1ppm*
Up to 200m (656ft.) range.
Display 3.5in. TFT QVGA backlit color LCD Touch Screen
Auto-Point Range (Single Prism) 1.3 to 1,000m (4.3 to 3,280ft.)
Auto-Point Accuracy (Single Prism) 1” (0.3mgon) (1mm@200m)
Auto-Pointing accuracy is verified using the methods specified by ISO 17123-3.
