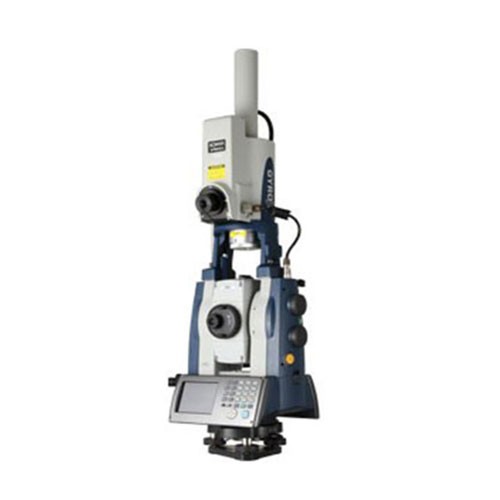

Sokkia GYRO X II Automated Gyro Station 1

quick info

[xyz-ips snippet="IS-Standard"]

Backsight, traverse, and solar observation are no longer required for seeking true north when GYRO X II is on the job. It operates anywhere, anytime, where other technologies cannot work or when no known station is available.

[wpdm_package id='7851']
[vcex_divider color=”#eaeaea”]

GYRO X II uses a suspended gyro motor that oscillates around the earth’s meridian (true north) due to the principle of precession caused by the rotation of the earth. This principle realizes faster and more precise measurements than other solutions.

The GYRO X II is ideal for:

Directional controls for tunnel construction.
The internal baseline setup for enclosed spaces – inside buildings or hull blocks.
Directional controls for parabola antennas or power lines.

Integrated onto an advanced Sokkia SX auto-pointing total station that can be used for traditional surveying and measurement applications
Only 19 minutes* for measurement effectively doubling your work efficiency and decreasing operator stress on every job.
*Combination of preliminary measurement and regular measurement. When measured at 35° latitude area. Measurement time differs by the latitude due to the nature of the gyro motor.
15” azimuth accuracy. The combination of special application software and an advanced motor drive system allows the true north position to be automatically calculated within an accuracy of ±15” (5mgon / 0.074mil).
Easy-to-use with three simple steps for a measurement:
Point the Gyro Station roughly in the direction of true north.
Release the clamp.
Push the measurement button.
