Hand Operated Extractor, for 38mm dia specimens for extracting soil core specimens of 38mm dia from sampling tube or from larger size samplers. It can be used in the field also, for taking out samples.



Ref. Standard

IS: 2070

Country Origin

Indian

Make / OEM

VERTEX

Model

VSLIC-S101

Brochure

Warranty

This Warranty covers the defects resulting from defective parts, materials or manufacturing, if such defects are revealed during the period of 12 months since the date of purchase.


All pictures shown are for illustration purpose only. actual product may vary due to product enhancement.

  • OVERVIEW

  • SPECIFICATIONS

  • FEATURES

  • VIDEO

  • DIMENSION

OVERVIEW

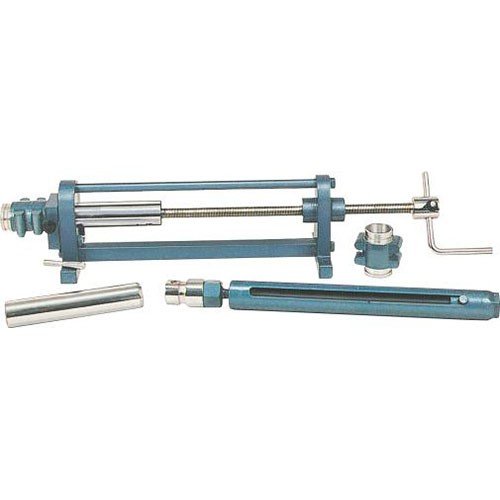

Extractor frame universal screw-type comprises of a frame designed for screw jack operation, one each of the adaptors for 38mm, 75mm, 100mm, 150mm diameter specimens, and a stand to obtain simultaneously three 38mm dia samples from one 150mm dia sample. Extractor frame universal screw-type adaptor plate which slides along the slotted support can be claimed at any desired position by means of locking nuts. Besides this, the tube or mould can be held in position by raising the tube guides and held in position with locking screws, and lead screw movement can be stopped at any position tightening to the lead screw collar. Plunger adaptor for 200mm dia samples. Adaptor plate with 200mm diameter hole and device to extract b number 38mm dia. Samples.

SPECIFICATIONS

The equipment (VSLIC S101) Consist of the following replaceable parts:

  • VSLIC S1011 :  Sample Extractor Frame Screw Type with a Wire Sample with a Wire Sample Trimmer for 38mm dia.
  • VSLIC S1012 :  Jarring Link for Driving the Sampling Tube.
  • VSLIC S1013 :  Adaptor with locking screw for fitting the 38mm dia Sampling Tube to Jarring Link.
  • VSLIC S1014 :  Split Mould 38mm dia x 76mm long, provided with Quick Release Clamps.
  • VSLIC S1016 :  Sampling Tube Unrelieved 38mm dia x 200mm long.

FEATURES

PRODUCT VIDEO

DIMENSION

Length (Inch) Width (Inch) Height (Inch)
