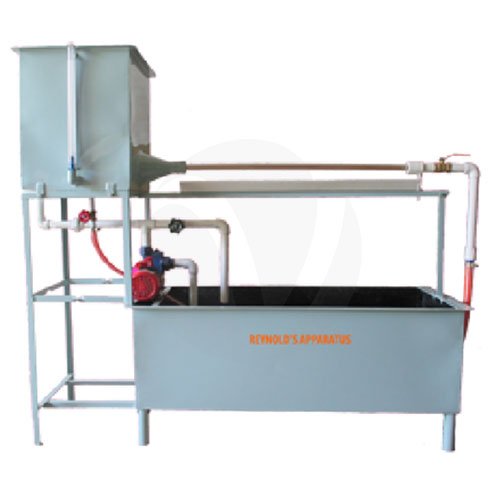

The Reynolds Apparatus is used to study laminar, transitional, and turbulent flow. Features a transparent tank with an adjustable overflow pipe. Water admitted via diffuser and stilling materials, discharged via bellmouth transparent tube with flow control valve. Flow rate measured by hydraulics bench or measuring cup. Dye injection system for flow pattern observation.

[wpdm_package id='6570']
[vcex_divider color=”#eaeaea”]

The Reynolds Apparatus is used to study laminar, transitional, and turbulent flow. Features a transparent tank with an adjustable overflow pipe. Water admitted via diffuser and stilling materials, discharged via bellmouth transparent tube with flow control valve. Flow rate measured by hydraulics bench or measuring cup. Dye injection system for flow pattern observation.

Learning Objectives/Experiments:

To determine the Reynold’s number and hence the type of flow either laminar or turbulent

Control Panel:

  • Standard make On/Off switch, Mains Indicator etc.

Scope of Delivery:

  • 1 Self Contained “Reynolds Apparatus”
  • 1 Instruction Manual consisting of experimental procedures, block diagram etc,

Specification:

Test SectionMaterial Perspex Acrylic Tube 25 mm dia.
Flow MeasurementUsing Measuring Tank with Piezometer Capacity 35 Lts.
Water Circulation0.5. H.P. Pump (Standard Make)
Flow MeasurementUsing Measuring Tank, capacity 35 Ltrs.
Sump TankCapacity 70 Lts.- Tanks will be made of M.S. sheet. The inside surface of the tank is provided with FRP to minimize the problem of corrosion.

The whole setup is self-contained water re-circulating unit well designed and arranged in a good quality painted structure.
