quick info

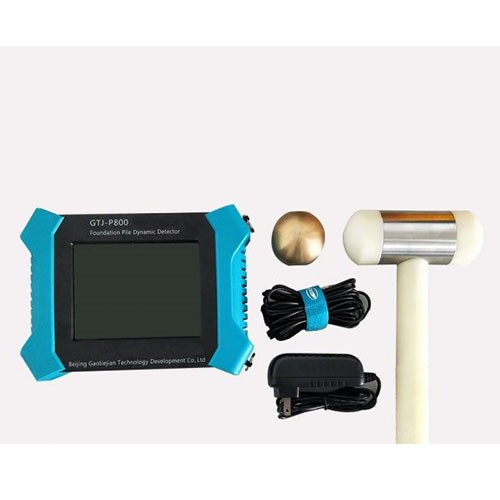

Pile Integrity Tester is a test and analysis instrument for pile integrity testing and monitoring of precast pile driving process. Under impact or vibration load, the pile structure integrity and vertical bearing capacity of the single pile are tested and analyzed. The purpose is to determine the bearing capacity of the pile and the integrity of the pile structure.

Ref. Standard

As Per IS Standard

Country Origin

Indian

Make / OEM

VERTEX

Model

GTJ-P800

Warranty

This Warranty covers the defects resulting from defective parts, materials or manufacturing, if such defects are revealed during the period of 12 months since the date of purchase.


All pictures shown are for illustration purpose only. actual product may vary due to product enhancement.

  • OVERVIEW

  • SPECIFICATIONS

  • FEATURES

  • VIDEO

  • DIMENSION

OVERVIEW

Pile Integrity Tester is a test and analysis instrument for pile integrity testing and monitoring of precast pile driving process. Under impact or vibration load, the pile structure integrity and vertical bearing capacity of the single pile are tested and analyzed. The purpose is to determine the bearing capacity of the pile and the integrity of the pile structure.

Product Features:

  • New upgraded wireless cloud transmission function.
  • The operation of the instrument is convenient and fast. From the requirement of engineering inspection, the user can quickly master the usage method.
  • Small size, light weight, easy to carry.
  • The user operates through the touch screen, and the interface is simple.
  • Support multiple waveform processing methods to make defect positioning more accurate.
  • large-capacity data memory, support for mobile storage.
  • Built-in rechargeable lithium battery, long standby time.
  • The analysis software under Windows platform has comprehensive functions and flexible printing settings. It can print preview and output processing results, and can generate test reports

SPECIFICATIONS

Product Model VS-P800
System Noise Voltage Less than 2 mV
Dynamic range More than 138dB
Amplifier Band 10Hz-10kHz
A/D Resolution 16-bit A/D
Sampling time interval 2us-32768us
Sampling Length 1024, 2048, 4096
Time indication error Less than 1%
Channel Number One
Amplification factor 1-128
Data transmission mode Wireless Cloud Transport (Options)
Trigger mode Signal triggering
Sensor Sensitivity 100 mV/g
Sensor frequency band 1-10000Hz
Continuous working hours More than 10 hours
Power Supply Built-in rechargeable lithium battery (+7.4V)
Display 640*480 Capacitance Screen
Operational mode Touch
Weight 1.24Kg
Size 220x160x50

FEATURES

  • New upgraded wireless cloud transmission function.
  • The operation of the instrument is convenient and fast. From the requirement of engineering inspection, the user can quickly master the usage method.
  • Small size, light weight, easy to carry.
  • The user operates through the touch screen, and the interface is simple.
  • Support multiple waveform processing methods to make defect positioning more accurate.
  • large-capacity data memory, support for mobile storage.
  • Built-in rechargeable lithium battery, long standby time.
  • The analysis software under Windows platform has comprehensive functions and flexible printing settings. It can print preview and output processing results, and can generate test reports

PRODUCT VIDEO

DIMENSION

Length (Inch) Width (Inch) Height (Inch)
