short info

Concrete Test Hammer from Vertex is used for the non-destructive compression strength measurement of concrete. In such a way, concrete is tested for its load-bearing capacity and strength. The measuring principle is such that the concrete Test Hammer hits the concrete. Depending on the concrete hardness, the body rebounds, more or less. The rebound is measured by the device and can be converted to compressive strength.

Standard

IS: 13311(2)-1992 India, ISO/DIS 8045 International, EN 12 504-2 Europe, ENV 206 Europe, BS 1881, part 202 Great Britain, DIN 1048, part 2 Germany, ASTM C 805 USA, NFP 18-417 France, B 15, 225 Belgium, JGJ/ T 23-2011 China

Model

VSLIC-C262

Origin

Indian

Make/ OEM

VERTEX

  • Description

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New
    WORKING PRINCIPAL

OVERVIEW

Application

Used for testing the compressive strength of ordinary concrete in the range of 10 to 70 N/mm² (1’450 to 10’152 psi) in structural engineering

Product Features

  • Imported high-quality springs are more fatigue-resistant, aluminum alloy spring seat snap ring assembly
  • Adopt CNC machining center and other machine tools to refine the movement, and the rebound value is guaranteed.
  • Silicone bracket for soft hand protection, more comfortable rebound operation.
  • Finely grind the spherical zero-setting screws to make the rebound firing smoother and smoother.
  • Improved pointer design, easy to adjust friction and more stable.
  • Beautiful label and ruler are easy to read, and the hard oxidation treatment of the parts is beautiful and durable.
  • High-precision aluminum alloy flange is not easy to be damaged, and high-precision hook is not easy to be elastically empty due to abrasion.
  • Multiple original imported dust-proof components, cleaner movement and longer maintenance period
  • Abrasion resistance of super-hard 6061 aluminum alloy casing, and the button is not easy to fall off by stretching process.



SPECIFICATIONS

Technical Specification

  • Standard impact energy:2.207 J
  • Pointer length: 20.0 ± 0. 2mm
  • Friction of pointer: 0.65 ± 0. 15N
  • Spherical radius of bouncing rod: 25±1.0mm

FEATURES

Product Features

  • Imported high-quality springs are more fatigue-resistant, aluminum alloy spring seat snap ring assembly
  • Adopt CNC machining center and other machine tools to refine the movement, and the rebound value is guaranteed.
  • Silicone bracket for soft hand protection, more comfortable rebound operation.
  • Finely grind the spherical zero-setting screws to make the rebound firing smoother and smoother.
  • Improved pointer design, easy to adjust friction and more stable.
  • Beautiful label and ruler are easy to read, and the hard oxidation treatment of the parts is beautiful and durable.
  • High-precision aluminum alloy flange is not easy to be damaged, and high-precision hook is not easy to be elastically empty due to abrasion.
  • Multiple original imported dust-proof components, cleaner movement and longer maintenance period
  • Abrasion resistance of super-hard 6061 aluminum alloy casing, and the button is not easy to fall off by stretching process.

PRODUCT VIDEO

WORKING PRINCIPALNew

What is Rebound Hammer Test?

Rebound Hammer test is a Non-destructive testing method of concrete which provide a convenient and rapid indication of the compressive strength of the concrete. The rebound hammer is also called as Schmidt hammer that consist of a spring controlled mass that slides on a plunger within a tubular housing.

The operation of rebound hammer is shown in the fig.1. When the plunger of rebound hammer is pressed against the surface of concrete, a spring controlled mass with a constant energy is made to hit concrete surface to rebound back. The extent of rebound, which is a measure of surface hardness, is measured on a graduated scale. This measured value is designated as Rebound Number (rebound index). A concrete with low strength and low stiffness will absorb more energy to yield in a lower rebound value.

Operation of the rebound hammer

Fig.1.Operation of the rebound hammer

Objective of Rebound Hammer Test

As per the Indian code IS: 13311(2)-1992, the rebound hammer test have the following objectives:

  1. To determine the compressive strength of the concrete by relating the rebound index and the compressive strength
  2. To assess the uniformity of the concrete
  3. To assess the quality of the concrete based on the standard specifications
  4. To relate one concrete element with other in terms of quality

Rebound hammer test method can be used to differentiate the acceptable and questionable parts of the structure or to compare two different structures based on strength.

Principle of Rebound Hammer Test

Rebound hammer test method is based on the principle that the rebound of an elastic mass depends on the hardness of the concrete surface against which the mass strikes. The operation of the rebound hammer is shown in figure-1. When the plunger of rebound hammer is pressed against the concrete surface, the spring controlled mass in the hammer rebounds. The amount of rebound of the mass depends on the hardness of concrete surface.

Thus, the hardness of concrete and rebound hammer reading can be correlated with compressive strength of concrete. The rebound  value  is  read  off  along  a  graduated  scale  and is designated  as  the rebound  number  or  rebound  index.  The compressive strength can be  read directly from the graph provided on the body of the hammer.

Procedure for Rebound Hammer Test

Procedure for rebound hammer test on concrete structure starts with calibration of the rebound hammer. For this, the rebound hammer is tested against the test anvil made of steel having Brinell hardness number of about 5000 N/mm2.

After the rebound hammer is tested for accuracy on the test anvil, the rebound hammer is held at right angles to the surface of the concrete structure for taking the readings. The test thus can be conducted horizontally on vertical surface and vertically upwards or downwards on horizontal surfaces as shown in figure below

If the rebound hammer is held at intermediate angle, the rebound number will be different for the same concrete.



Mechanical-Rebound-Hammer-VS2

Rebound Hammer Positions for Test on Concrete Structure

Fig.2.Rebound Hammer Positions for Testing Concrete Structure

The impact energy required for the rebound hammer is different for different applications. Approximate Impact energy levels are mentioned in the table-1 below for different applications.

Table-1: Impact Energy for Rebound Hammers for Different Applications As per IS: 13311(2)-1992

Sl.No Applications Approximate Impact Energy for Rebound Hammer in Nm
1 For Normal Weight Concrete 2.25
2 For light weight concrete / For small and impact resistive concrete parts 0.75
3 For mass concrete testing Eg: In roads, hydraulic structures and pavements 30.00

Points to Remember in Rebound Hammer Test

  1. The concrete surface should be smooth, clean and dry.
  2. Ant loose particles should be rubbed off from the concrete surface with a grinding wheel or stone, before hammer testing.
  3. Rebound hammer test should not be conducted on rough surfaces as a result of incomplete compaction, loss of grout, spalled or tooled concrete surface.
  4. The point of impact of rebound hammer on concrete surface should be at least 20mm away from edge or shape discontinuity.
  5. Six readings of rebound number is taken at each point of testing and an average of value of the readings is taken as rebound index for the corresponding point of observation on concrete surface.

Correlation between compressive strength of concrete and rebound number

The most suitable method of obtaining the correlation between compressive strength of concrete and rebound number is to test the concrete cubes using compression testing machine as well as using rebound hammer simultaneously. First the rebound number of concrete cube is taken and then the compressive strength is tested on compression testing machine. The fixed load required is of the order of 7 N/ mm2 when the impact energy of the hammer is about 2.2 Nm.

The load should be increased for calibrating rebound hammers of greater impact energy and decreased for calibrating rebound hammers of lesser impact energy. The test specimens should be as large a mass as possible in order to minimize the size effect on the test result of a full scale structure. 150mm cube specimens are preferred for calibrating rebound hammers of lower impact energy (2.2Nm), whereas for rebound hammers of higher impact energy, for example 30 Nm, the test cubes should not be smaller than 300mm.

The concrete cube specimens should be kept at room temperature for about 24 hours after taking it out from the curing pond, before testing it with the rebound hammer. To obtain a correlation between rebound numbers and strength of wet cured and wet tested cubes, it is necessary to establish a correlation between the strength of wet tested cubes and the strength of dry tested cubes on which rebound readings are taken.

A direct correlation between rebound numbers on wet cubes and the strength of wet cubes is not recommended. Only the vertical faces of the cubes as cast should be tested. At least nine readings should be taken on each of the two vertical faces accessible in the compression testing machine when using the rebound hammers. The points of impact on the specimen must not be nearer an edge than 20mm and should be not less than 20mm from each other. The same points must not be impacted more than once.

Interpretation of Rebound Hammer Test Results

After obtaining the correlation between compressive strength and rebound number, the strength of structure can be assessed. In general, the rebound number increases as the strength increases and is also affected by a number of parameters i.e. type of cement, type of aggregate, surface condition and moisture content of the concrete, curing and age of concrete, carbonation of concrete surface etc.

Relationship Between Cube Strength and the Rebound Number

Fig.3.Relationship Between Cube Strength and the Rebound Number

Moreover the rebound index is indicative of compressive strength of concrete up to a limited depth from the surface. The internal cracks, flaws etc. or heterogeneity across the cross section will not be indicated by rebound numbers.

Table-2 below shows the quality of concrete for respective average rebound number.

Table.2. Quality of Concrete for different values of rebound number

As such the estimation of strength of concrete by rebound hammer method cannot be held to be very accurate and probable accuracy of prediction of concrete strength in a structure is ± 25 percent. If the relationship between rebound index and compressive strength can be found by tests on core samples obtained from the structure or standard specimens made with the same concrete materials and mix proportion, then the accuracy of results and confidence thereon gets greatly increased.

Advantages and Disadvantages of Rebound Hammer Test

The advantages of Rebound hammer tests are:

  1. Apparatus is easy to use
  2. Determines uniformity properties of the surface
  3. The equipment used is inexpensive
  4. Used for the rehabilitation of old monuments

The disadvantages of Rebound Hammer Test

  1. The results obtained is based on a local point
  2. The test results are not directly related to the strength and the deformation property of the surface
  3. The probe and spring arrangement will require regular cleaning and maintenance
  4. Flaws cannot be detected with accuracy

Factors Influencing Rebound Hammer Test

Below mentioned are the important factors that influence rebound hammer test:

  1. Type of Aggregate
  2. Type of Cement
  3. Surface and moisture condition of the concrete
  4. Curing and Age of concrete
  5. Carbonation of concrete surface

Type of Aggregate

The correlation between compressive strength of  concrete and the rebound number will vary with the use of different aggregates. Normal correlations in the results are obtained by the use of normal aggregates like gravels and crushed aggregates. The use of lightweight aggregates in concrete will require special calibration to undergo the test.

Type of Cement

The concrete made of high alumina cement ought to have higher compressive strength compared to Ordinary portland cement. The use of supersulphated cement in concrete decrease the compressive strength by 50% compared to that of OPC.

Type of Surface and Moisture Condition

The rebound hammer test work best for close texture concrete compared with open texture concrete.  Concrete with high honeycombs and no-fines concrete is not suitable to be tested by rebound hammer. The strength is overestimated by the test when testing floated or trowelled surfaces when compared with moulded surfaces.

Wet concrete surface if tested will give a lower strength value. This underestimation of strength can go lower to 20% that of dry concrete.

Type of curing and age of concrete

As time passes, the relation between the strength and hardness of concrete will change. Curing conditions of concrete and their moisture exposure conditions also affects this relationship. For concrete with an age between 3days to 90 days is exempted from the effect of age. For greater aged concrete special calibrated curves is necessary.

Carbonation on Concrete Surface

A higher strength is estimated by the rebound hammer on a concrete that is subjected to carbonation. It is estimated to be 50% higher. So the test have to be conducted by removing the carbonated layer and testing by rebound hammer over non-carbonated layer of concrete.

Get Instant Quote

Our Hot Selling Instrument's

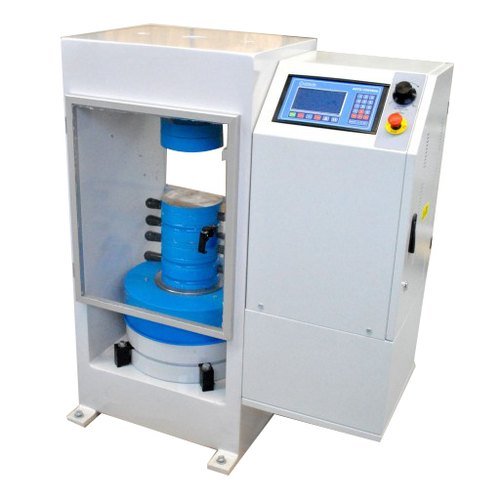

Servo Fully Automatic Compression Testing Machine

Servo Fully Automatic Compression Testing Machine

One of the key advantages of the SERVO CONTROLLED FULLY AUTOMATIC COMPRESSION TESTING MACHINE is its ability to deliver highly accurate results. This precision ensures that your materials meet the required standards, reducing the risk of costly errors and rework. Moreover, by producing consistent and reliable outcomes, you build a reputation for quality in your industry.

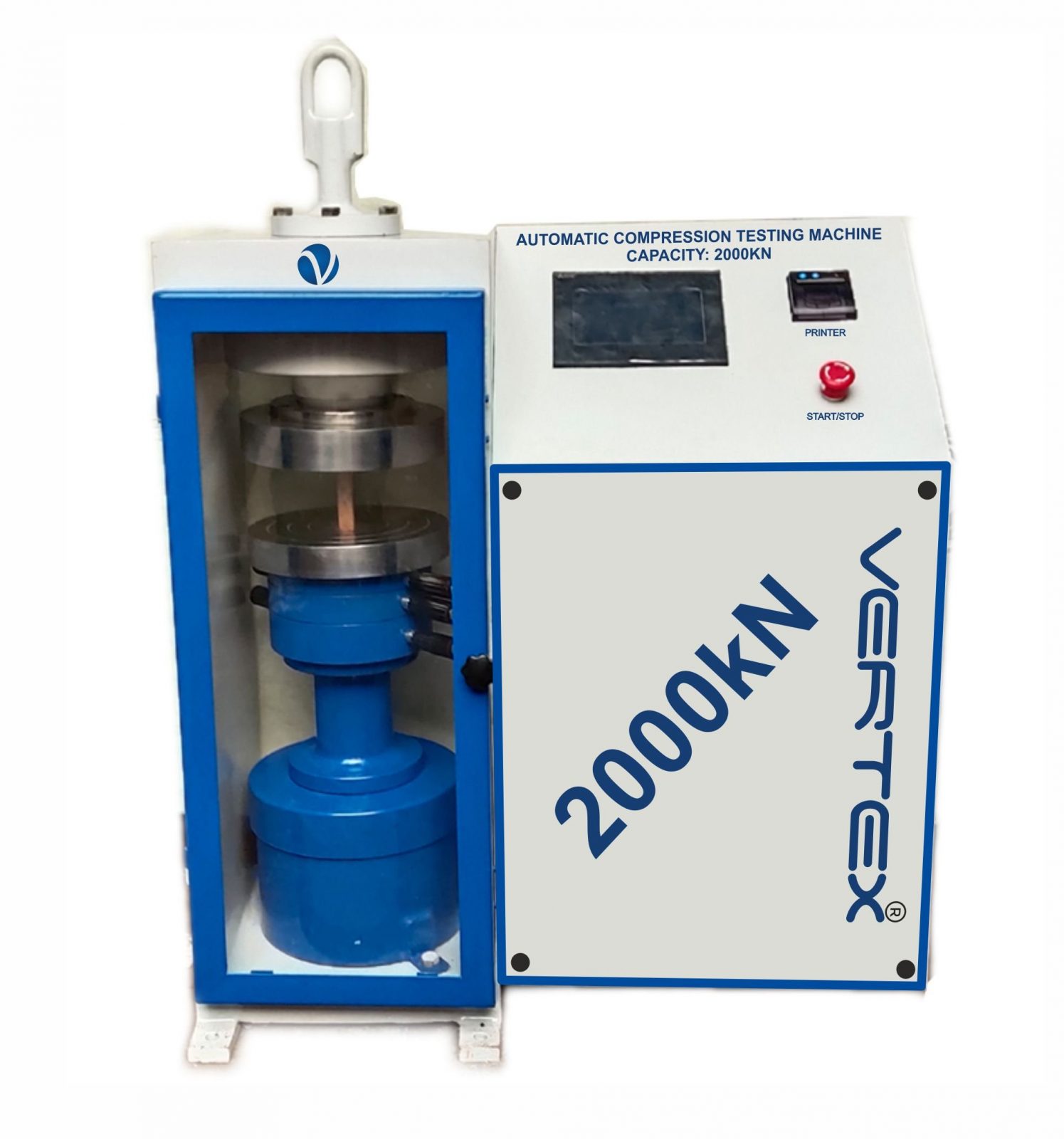

Automatic Compression Testing Machine

Automatic Compression Testing Machine

Manufactured as per International design, Plate model for highest mechanical stability, accurate centering of load and excellent repeatability. Fully Automatic pace rate control, auto stop and auto release on failure of test specimen, can be attached with flexural load frame or 500 KN load frame.

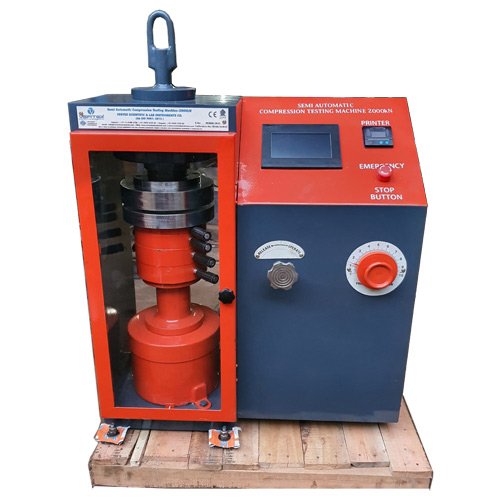

Semi Automatic Compression Testing Machine

Semi Automatic Compression Testing Machine

Pace rate is achieved manually by controlling the flow control knob and the adjustment can be made by observing the error on the display and the system is released manually after the peak load is achieved.

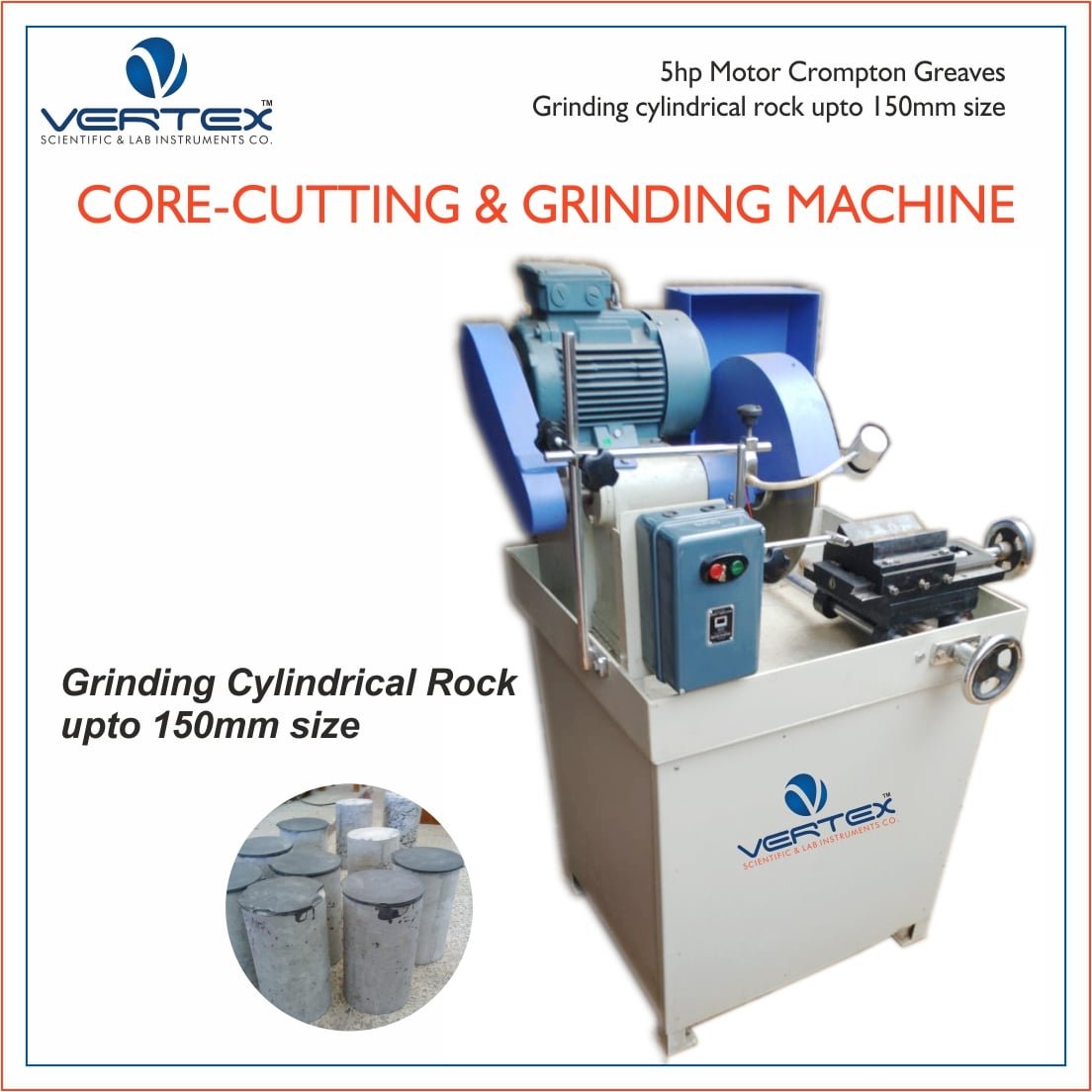

Rock Core Cutting & Grinding Machine
