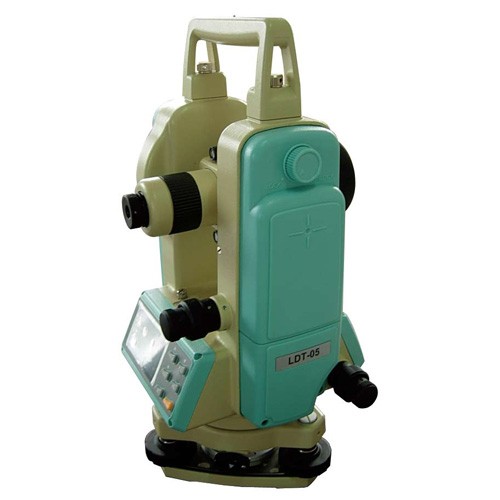

The Leica LDT-05 digital electronic theodolite is designed for enhanced performance in construction applications. Work faster with the advanced features of the Leica Digital Theodolite LDT-05 to improve productivity while increasing the bottom line.

Ref. Standard

5-second accuracy – High accuracy for tight tolerances

Country Origin

Indian

Make / OEM

VERTEX

Model

Leica LDT-05

Warranty

This Warranty covers the defects resulting from defective parts, materials or manufacturing, if such defects are revealed during the period of 12 months since the date of purchase.


All pictures shown are for illustration purpose only. actual product may vary due to product enhancement.

  • OVERVIEW

  • SPECIFICATIONS

  • FEATURES

  • VIDEO

  • DIMENSION

OVERVIEW

The Leica LDT-05 digital electronic theodolite is designed for enhanced performance in construction applications. Work faster with the advanced features of the Leica Digital Theodolite LDT-05 to improve productivity while increasing the bottom line.

Fast set-up and easy to use The advanced features of the LDT-05 Leica Theodolite makes set-up fast and very easy. The intuitive on-board functions allow most anyone to use this great tool, even those with minimal experience! Economical and affordable The LDT-05 is attractively priced to fit everyone’s budget. Contact us today for more details and a formal quote.

  • 5-second accuracy – High accuracy for tight tolerances
  • Automatic vertical compensation – A tilt warning occurs if out of compensation range, preventing costly errors
  • Optical plummet – a Makes setting over a point a snap — much faster & easier
  • Precision dual LCD panels with large, easy-to-read numbers
  • Zero resetting – Instantly resets the horizontal angle to zero
  • The Leica LDT-05 includes both rechargeable and alkaline battery options

SPECIFICATIONS

Leica Electronic Theodolite LDT05 Key Features:

Leica theodolite is a new generation technical equipment for measuring both horizontal and vertical angles, It is a key instrument for land surveying and civil engineering work. The electronic theodolite consists of a telescope movable within two perpendicular axes – the horizontal axis, and the vertical axis. When the telescope is pointed at a desired object, the angle of each of these axes can be measured very precisely.

Enhanced Reliability

  • 5’’ horizontal and vertical readout
  • Precision dual LCD panels with large, easy-to-read numbers
  • Vertical angle measuring provides three different options plus percentage of grade

Easy-to-read & easy-to-use

  • Auto Power Off option
  • Optical plummet
  • Zero resetting
  • Removable tribrach for multiple set-ups

Audible right-angle notification

  • Once the (0) horizontal angle is determined, the Leica LDT-05 emits an audible tone for each of the right angle directions
  • Beeping stops when the units comes within +/– 1°

Rugged IP54 protection

  • Water resistant, sealed construction
  • One year warranty

FEATURES

Leica Digital Theodolite LDT 05 Technical Specifications:

Model Leica LDT-05
Precision 5”
Display resolution 1” or 5”
Display units DEG (360° 00’ 00”), GON (400), MIL (6400), V / %
Telescope
Magnification 30x
Objective aperture 45 mm (1.7 in)
Minimum focusing distance 1.35 m (4.43 ft)
Stadia multiplication factor/constant 100/0
Compensator
System Automatic vertical compensator, User set On/Off
Working Range ± 3’
Operation
Display Double side large character back-lit LCD
Keys 6 one touch button functions
Optical plummet
Image Erect
Magnification 3x
Field of view
Focusing range 0.5m~
Environmental conditions
Protection to dust and water dust and water resistant
Weight
Weight including battery and tribrach 4.6 kg (9.9 lb)
Battery/Power management
Type of battery Rechargeable NiMH, replacement alkaline battery pack
Operation period without laser plummet 36 h

PRODUCT VIDEO

DIMENSION

Length (Inch) Width (Inch) Height (Inch)
