Premium Quality Pan Mixer Size 40Ltr, 60Ltr, 80Ltr, 100Ltr & 200 Ltrs VSLIC-C217

short info

The Pan Mixer has been designed for mixing small quantities of concrete used in the preparation of concrete cubes, for testing in laboratories.

Standard

ISO 18650-1:2004 (Part 1)

Model

VSLIC-C217

Origin

Indian

Make/ OEM

VERTEX

get a quote

  • Description

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New
    WORKING PRINCIPAL

OVERVIEW

Designed for mixing small quantities of concrete used in preparation of concrete cubes for testing in Laboratories. The purpose of the mixer is to smear mechanically the aggregate surface with cement paste uniformly and produce a mix of uniform consistency. This in turn gives consistent quality of cube specimens when casted in the moulds.

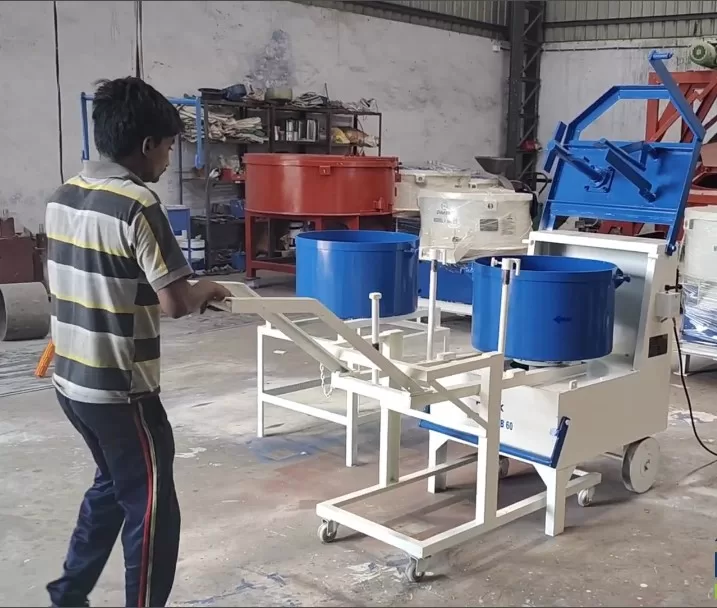

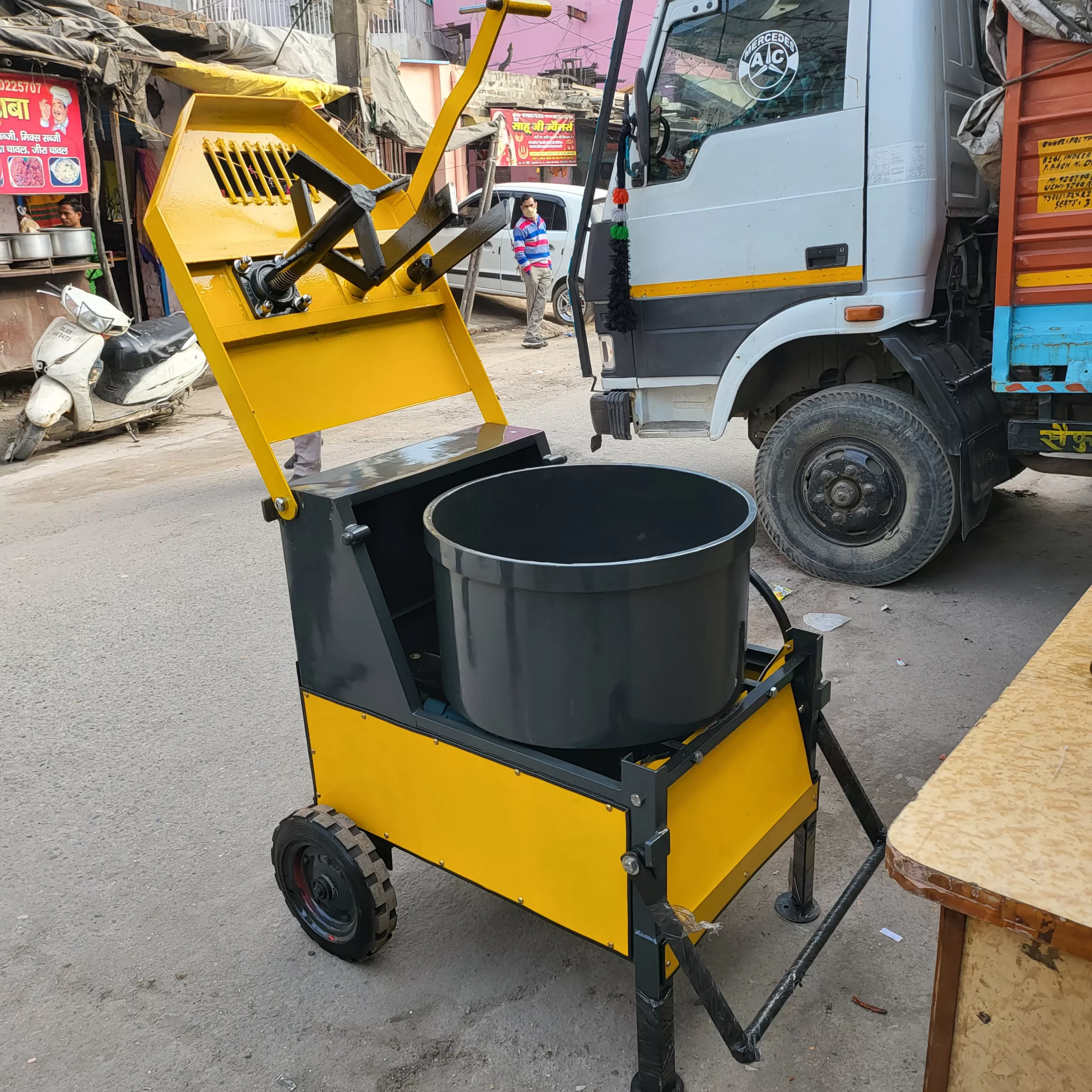

The concrete mixer developed in transportable on wheels. The design of the mixing paddles ensure uniform and efficient mixing of cement and aggregate in dry & wet conditions. The design also facilitates lifting of mixing drum with the help of steering wheel. The arrangement helps the operator to access the pan contents conveniently and emptying the mixture after completion of the operation. The drum is driven through a Heavy Duty Gear Box. Positive rotating motion of the drum is ensured by unique design of the ribbed base. The lid with mixing paddles clears off the top of the drum to provide maximum access to the operator. Electric supply motor, 3 HP, 440 V, 3 phase, AC. Suitable to Cast 12 Moulds at a Time in single batch.

  • Solid airless wheel.
  • With motor cable & starter switch.
  • Finished with D.A grey PU colour.
  • Weight of the machine is approx. 300 kg


Related Searches

SPECIFICATIONS



Pan dia 24″ (60 cm)
Pan Height 14″ (35 cm)
Bottom plate 10 mm M.S.
Side wall plate 1.5 mm M.S
R.P.M 22-24 R.P.M
Electrical motor CROMPTON /ABB / GODREG / OR EQUIVALENT Make
Gear box Reduction Gear Box filled with Oil
Pan Volume 60 Ltrs.
Overall Dimensions in Inches (L x W x H) 34 x 37 x 51
Weight (Approx.) 300 kg

FEATURES

  • The Concrete mixer has been designed for mixing small quantities of concrete used in preparation of concrete cubes, for testing in laboratories.
  • The purpose of the mixer is to smear mechanically the aggregate surface with cement paste uniformly & produce a mix of uniform consistency.
  • This in turn gives consistent quality of cubes specimens when casted in the moulds. The Concrete Mixer developed is transportable on wheels.
  • The design of mixing paddles ensure uniform & efficient mixing of cement & aggregate both in dry & wet conditions.
  • This machine is suitable for aggregate size upto 20 mm.
  • The equipment can also be put to use for mixing of any other material in dry / wet conditions.
  • The arrangement helps the operators to access the pan contents conveniently & emptying the mixture after completion of the operation.
  • The drum is driven off the ribbed base.
  • The lid with mixing paddles clears off the top of the drum to provide maximum access to the operator.

PRODUCT VIDEO

WORKING PRINCIPALNew
