In Situ Vane Shear VSLIC-S152

short info

This apparatus is designed to for conducting an in-situ Vane shear test from the bottom of a borehole in a saturated cohesive deposit, for determining their in-place shearing resistance.

Standard

IS:4434

Model

VSLIC-S152

Origin

Indian

Make/ OEM

VERTEX

get a quote

  • Description

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New
    WORKING PRINCIPAL

OVERVIEW

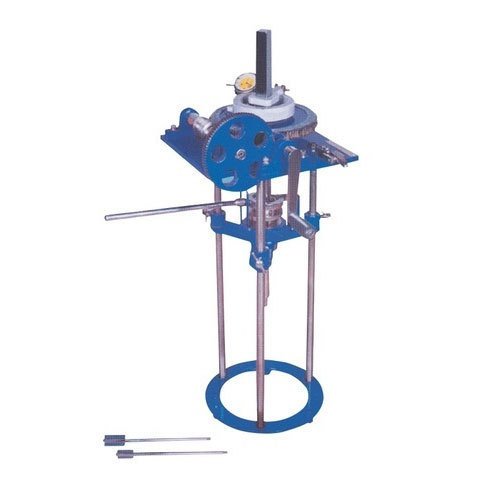

The equipment consists of a torque applicator assembly mounted on a base. A gear wheel, which is marked in degrees, holds torque ring and is geared to a crank.
The torque ring has a section cut from it and deforms at torques is applied and the resultant deformation is indicated by a dial gauge. A pointer is provided for registering the rotation of vane.


Related Searches

SPECIFICATIONS

In Situ Vane Shear A detachable stand is provided to anchor the instrument. An attachment to securely hold the string of rods Is provided.
A calibration curve to convert the dial gauge reading to kg-cm of torque is also supplied.

Technical Details

  • Torque Applicator Assembly. Capacity 2,000 kg-cm. complete with stand.
  • Vane (with vane rod), 37.5 mm dia x 75 mm high.
  • Vane (with vane rod), 50 mm dia x 100 mm high.
  • Torque rod (square cross-section) 60 cm long.
  • Rods (Quick coupling type) 1 m long.
  • Rods (Quick coupling type) 0.5 m long.
  • Dummy Rod.
  • Dial gauge 0.002 mm x 5 mm.

FEATURES

Optional Accessories:

  • VSLIC-S152     Vane (with vane rod), 65mm dia x 130 mm high.
  • VSLIC-S152     Vane (with vane rod), 75mm dia x 150 mm high.
  • VSLIC-S152     Vane (with vane rod), 100mm dia x 200 mm high.
  • VSLIC-S152     Guide with ball bearing arrangement, for alignment of the string of rods, for use with 10cm casing pipe.
