quick info

Vertex presenting you a high-quality Impact of jet apparatus. Designed in compliance with industry-leading parameters, it is used to study the forced developed of a jet of water on different surfaces and to compare it with momentum theory. Offered set up consists of visible test enclosure, supply tank, measuring tank and pump for closed-loop water circulation.

Ref. Standard

IS STANDARD

Country Origin

Indian

Make / OEM

VERTEX

Model

VSLIC-FM10

Warranty

This Warranty covers the defects resulting from defective parts, materials or manufacturing, if such defects are revealed during the period of 12 months since the date of purchase.


All pictures shown are for illustration purpose only. actual product may vary due to product enhancement.

  • OVERVIEW

  • SPECIFICATIONS

  • FEATURES

  • VIDEO

  • DIMENSION

OVERVIEW

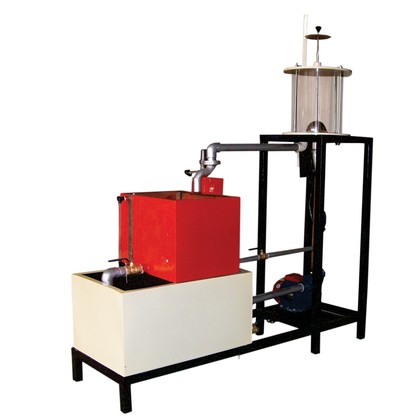

The setup consists of a two-sided clear fabrication section. Water is fed through a nozzle and discharged vertically to strike a target carried on a stem which extends through the cover. A weight carrier is mounted on the upper end of the stem. The deadweight of the moving parts is counterbalanced by a compression spring. The vertical force exerted on the target plate is measured by adding the weights supplied to the weight pan until the mark on the weight pan corresponds with the level gauge. A total of two targets are provided, a flat plate and a hemispherical cup.

  • Test Plates: Material Brass (2 Nos.), Flat Plate, Hemispherical Cup
  • Nozzle: Material Brass
  • Stainless Steel enclosure: Having of opposite sides made of glass.
  • Instruction Manual: An English instruction manual will be provided along with the Apparatus

SPECIFICATIONS

The setup consists of a two-sided clear fabrication section. Water is fed through a nozzle and discharged vertically to strike a target carried on a stem which extends through the cover. A weight carrier is mounted on the upper end of the stem. The deadweight of the moving parts is counterbalanced by a compression spring. The vertical force exerted on the target plate is measured by adding the weights supplied to the weight pan until the mark on the weight pan corresponds with the level gauge. A total of two targets are provided, a flat plate and a hemispherical cup.

  • Test Plates: Material Brass (2 Nos.), Flat Plate, Hemispherical Cup
  • Nozzle: Material Brass
  • Stainless Steel enclosure: Having of opposite sides made of glass.
  • Instruction Manual: An English instruction manual will be provided along with the Apparatus

FEATURES

The setup consists of a two-sided clear fabrication section. Water is fed through a nozzle and discharged vertically to strike a target carried on a stem which extends through the cover. A weight carrier is mounted on the upper end of the stem. The deadweight of the moving parts is counterbalanced by a compression spring. The vertical force exerted on the target plate is measured by adding the weights supplied to the weight pan until the mark on the weight pan corresponds with the level gauge. A total of two targets are provided, a flat plate and a hemispherical cup.

  • Test Plates: Material Brass (2 Nos.), Flat Plate, Hemispherical Cup
  • Nozzle: Material Brass
  • Stainless Steel enclosure: Having of opposite sides made of glass.
  • Instruction Manual: An English instruction manual will be provided along with the Apparatus

PRODUCT VIDEO

DIMENSION

Length (Inch) Width (Inch) Height (Inch)
Get price for this instrument
