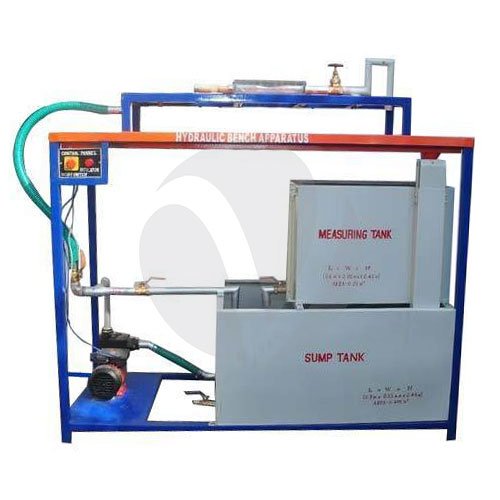

This is a water re-circulation system consisting of a water sump tank, monoblock pump, top tray with a drain, discharge measurement tank, and a bye-pass arrangement for the monoblock pump.

Hydraulic Test Bench with necessary accessories forms a needful laboratory facility which enables to perform various Fluid Mechanics experiments.

[wpdm_package id='6570']
[vcex_divider color=”#eaeaea”]

Description:

This is a water re-circulation system consisting of a water sump tank, mono block pump, top tray with drain, discharge measurement tank, and a bye-pass arrangement for the mono block pump.
Hydraulic Test Bench with necessary accessories forms a needful laboratory facility which enables to perform various Fluid Mechanics experiments.

Standard Features:

  • Bye-pass line is also used to regulate the discharge.

Following apparatus are provided with this bench as per requirements.

  • Impact of Jet Apparatus.
  • Bernoulli’s Theorem Apparatus.
  • Flow measurement by Venturimeter.
  • Flow measurement by Orifics meter.
  • Pitot Tube Apparatus.
  • Orifice and Mouthpiece Apparatus.
  • Notch Apparatus.
  • Losses in Pipe Fitting Apparatus.
  • Pipe Friction Apparatus.
  • Reynolds Apparatus.

Experiments:

  • Pressure Measurement Apparatus.
  • Ventur meter & Orifice meter.
  • Orifice & Mouthpiece.
  • Pipe Friction Apparatus.
  • Losses In Pipes.
  • Free & Forced Vortex Tube.
  • Notch Apparatus.
  • Reynold’s Apparatus.
  • Bernoulli’s Theorem Apparatus
  • Hele Shaw Apparatus
  • Meta centric Height Ship Model

Hydraulic Bench with necessary accessories forms a needful laboratory facility which enables to perform various Fluid Mechanics experiments.

Specifications:

Centrifugal pump25mm x 25mm with 1/2 HP Motor (ISI – Kirlosker Make)
M.S. SUMP TANK80 Liter to collect the water.
M.S. angle frame150 x 80 x 90 cmmounted on four wheels for easy movement
M.S. MEASURING TANK30 Liter fitted with piezometer tube to measure the discharge. Damper is used to collect the water in M.S. MEASURING TANK for certain time.
G.I. pipe of internal dia25 mm and ISI mark control valve and regulating valves are used to circulate water. Bye-pass line is also used to regulate the discharge.

Following apparatus are provided with this bench:

  • Pressure Measurement Apparatus.
  • Ventur meter & Orifice meter.
  • Orifice & Mouthpiece.
  • Pipe Friction Apparatus.
  • Losses In Pipes.
  • Free & Forced Vortex Tube.
  • Notch Apparatus.
  • Reynold’s Apparatus.
  • Bernoulli’s Theorem Apparatus
  • Hele Shaw Apparatus
  • Meta centric Height Ship Model
