Gear Pump Test Rig Setup Experiment

quick info

[xyz-ips snippet="IS-Standard"]

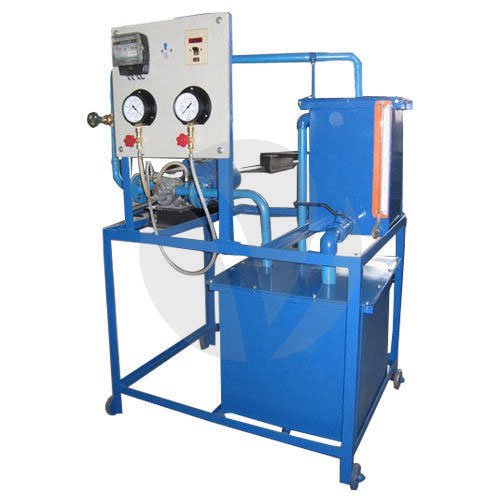

The Rig Set-up is manufacturing to study the performance of Gear Pump. The Set-up consists of a Gear Pump having a pair of meshed gears coupled with electrical motor, supply tank, measuring tank & pipe fittings for closed loop circulation. Pressure and Vacuum Gauges are connected on delivery and suction side of pump for the purpose of measurement. The flow rate of water is measured using measuring tank and stop watch provided.

Salient Features

  • Pump : Gear pump with pair of meshed gears, Capacity 1 HP Speed 1500 RPM (max), Head 5kg/cm2(max.)
  • Drive : AC Motor with step cone pulley arrangement for 3 prefixed speed Or DC Motor with DC Drive along with non contact type Digital RPM indicator.
  • Supply Tank : Capacity 30 ltr.
  • Measuring Tank : Capacity 20 Ltrs. fitted with Piezometer Tube & Scale
  • Piping : GI/PVC
  • Stop Watch : Electronic
  • Control Panel : With required electrical instrumentation.
  • The whole Set-up is well designed and arranged in a good quality painted structure.
[vcex_divider color=”#eaeaea”]

Gear Pump Test Rig Experiment

Experimental Capabilities:

  • Study Gear pump performance at different delivery heads
  • Determination of gear pump efficiency & its performance characteristics
  • Gear Pump: Input Power – 1 hp, Flow – 7 to 9 LPM (Max.)
  • Electric Motor: 1 hp, 230 V AC
  • Sump Tank: 20 Ltrs
  • Oil Flow Measurement
  • Pressure Relief Valve
  • Digital Watt-meter
  • Glycerin Filled Pressure Gauge
  • Vacuum Gauge
  • Hydraulic Seamless Piping with Oil Filter
  • Base Frame: Made in M.S. Square Tubes, Powder coated.

Technical Specifications:

  • Gear pump with 1/2 HP motor with three-speed cone pulley, mounted over the sump tank.
  • Discharge measurement tank.
  • Pressure gauge for discharge head and vacuum gauge for suction vacuum.
  • Energy meter for power input.
  • Pressure relief valve in discharge pipe.
  • Needle valve to control discharge pressure.

Following Characteristics can be determined:

  • Speed V/S Discharge
  • Head V/S Discharge
  • Discharge V/S input power
  • Discharge V/S efficiency

We also Manufacturing and Suppliers of Fluid Mechanics Lab Equipment

Salient Features

  • Pump : Gear pump with pair of meshed gears, Capacity 1 HP Speed 1500 RPM (max), Head 5kg/cm2(max.)
  • Drive : AC Motor with step cone pulley arrangement for 3 prefixed speed Or DC Motor with DC Drive along with non contact type Digital RPM indicator.
  • Supply Tank : Capacity 30 ltr.
  • Measuring Tank : Capacity 20 Ltrs. fitted with Piezometer Tube & Scale
  • Piping : GI/PVC
  • Stop Watch : Electronic
  • Control Panel : With required electrical instrumentation.
  • The whole Set-up is well designed and arranged in a good quality painted structure.
