quick info

Rockwell, Rockwell superficial & Rockwell cum Brinell tests consists of forcing an indentor (Diamond or Ball) into the surface of a test piece in two steps i.e. first with preliminary test force and thereafter with additional test force and then measuring depth of indentation after removal of additional test force (Remaining preliminary test force active) for measurement of hardness value.

Ref. Standard

IS: 1586:2000

Country Origin

Indian

Make / OEM

VERTEX

Model

VSLIC-DRH

Brochure

Warranty

This Warranty covers the defects resulting from defective parts, materials or manufacturing, if such defects are revealed during the period of 12 months since the date of purchase.


All pictures shown are for illustration purpose only. actual product may vary due to product enhancement.

  • OVERVIEW

  • SPECIFICATIONS

  • FEATURES

  • VIDEO

  • DIMENSION

OVERVIEW

Principal:

Rockwell, Rockwell superficial & Rockwell cum Brinell tests consists of forcing an indentor (Diamond or Ball) into the surface of a test piece in two steps i.e. first with preliminary test force and thereafter with additional test force and then measuring depth of indentation after removal of additional test force (Remaining preliminary test force active) for measurement of hardness value.

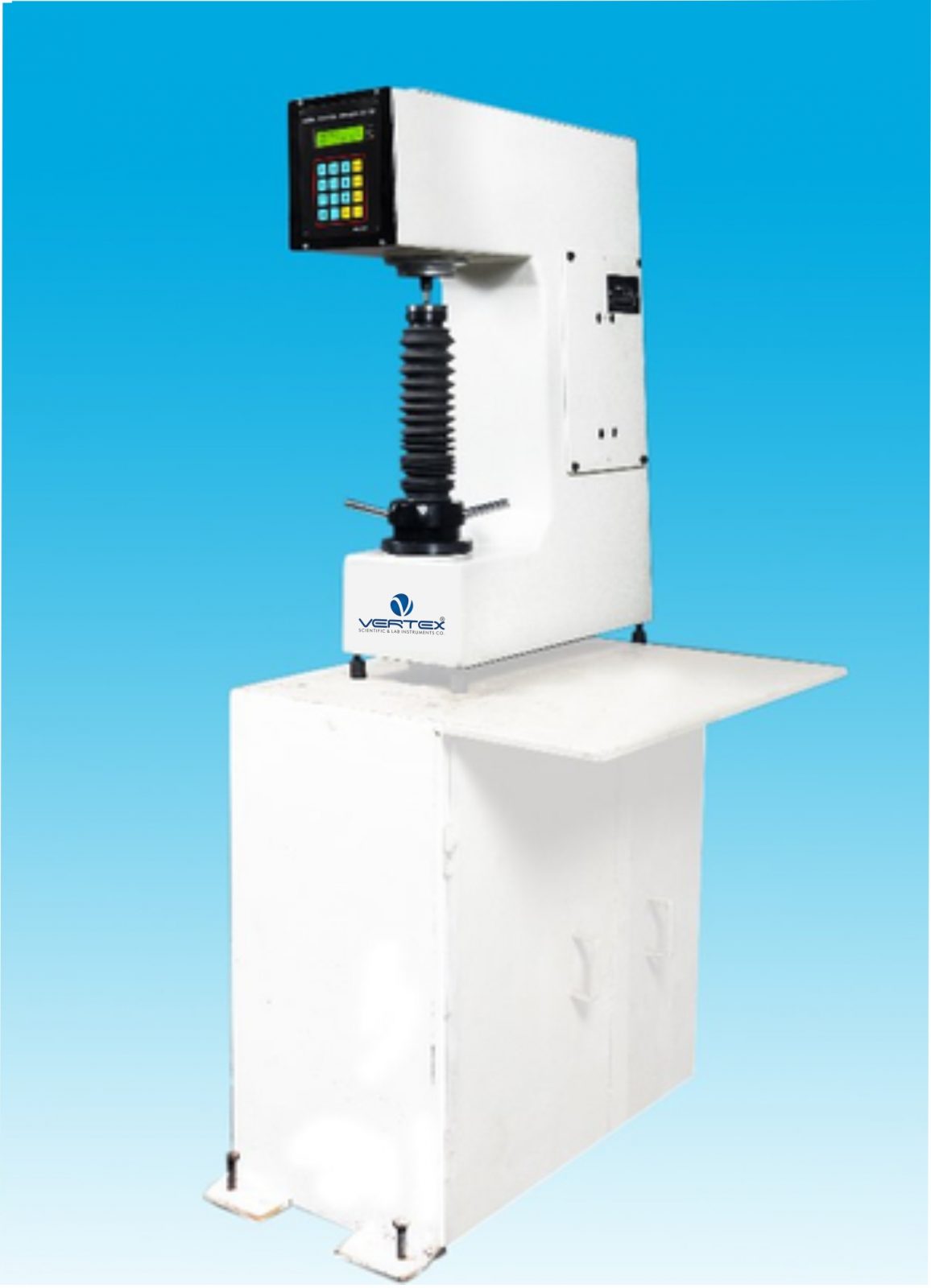

VSLIC-DRH series machines are suitable for Rockwell, Rockwell superficial & Rockwell cum Brinell tests. These are motorized digital Hardness testers having LCD display for easy hardness measurement. The results are displayed in 0.1 Rockwell unit for more accurate measurement.

Operation:

Various parameters of test can be set on front panel by operation of key board and observing LCD display Viz high/low limits, dwell time, auto/manual start, scale selection etc. All set data can be verified edited by pressing SCL key one after another.

Machine operation is very simple. The normal mode is a bar followed by “SET” indication. Raise elevating screw slowly through bar indication till “SET” position which will show “PRESS START” indication. Now press “START” button. Loading/unloading cycle will be completed and hardness is shown on LCD display with High/Good/Low indication.  Lower down elevating screw. Panel will show normal mode for next test. Also when required ‘AUTO START’ on front panel by operation of key board & observing LCD Display then raise elevating screw slowly through bar indication till “SET” position then it will starts loading/unloading cycle automatically & hardness is shown on LCD Display with High/Good/Low indication.

Vertex’s new ‘VSLIC-DRH’ series of Hardness Testing Machines come with much improved design & look with following major design changes.

  • This is motorized machine having automatic loading/unloading cycle suitable for production
  • The machine body is having a taper front look and a large size read-out in the front. The paint shade does not fade and machine looks like new over
  • The elevating screw of machine is guided in a hardened and ground bush, not allowing movement of elevating screw when raised to full height. The accessory is retained for years together due to hardened
  • A hardened and ground stepped bush is fixed on top of main screw for location and rest surface. This guarantees no change in results due to rough handling of test table or test It means a trouble-free long-life machine accuracy.
  • An antifriction linear bearing with almost no clearance is provided for a perfect vertical movement of loading plunger with minimum friction. This enables testing of small dia.
  • These models are provided with automatic working cycle and digital LCD display with 0.1 Rockwell resolution. This insures productivity with better
  • IS: 1586:2000 for Rockwell and superficial

SPECIFICATIONS

Technical Specification

Model Unit VSLIC-DRH
Major Load N (kgf) 1471 N

(150 kgf)

Minor Load N (kgf) 98.07N (10 kgf)
Max.Test height mm 230
Depth of throat mm 133
Net wt. Approx. kg. 77
M/c Dimensions mm L-450, W-175, H- 627

FEATURES

Model VSLIC-DRH
Type Digital Rockwell
Operation Cycle Automatic Load/Dwell/Unload
Preliminary Test Force 98.07N (10 kgf)
Additional Test Force 490.3, 882.6, 1373N

(50, 90, 140 kgf)

Total Test Force 588.4, 980.7, 1471N

(60, 100, 150 kgf)

Test Force Selection By external dialing
Set Position With LCD bar indicator
Key Board Entry Through membrane switches for scale, GO-No GO & dwell time selection
Resolution 0.1 Rockwell
Output Parallel output for connecting Dot Matrix Printer to get results indicating serial no. of tests, hardness scale, hardness value & high/good/low indication
Optional Serial PD interface & windows software
