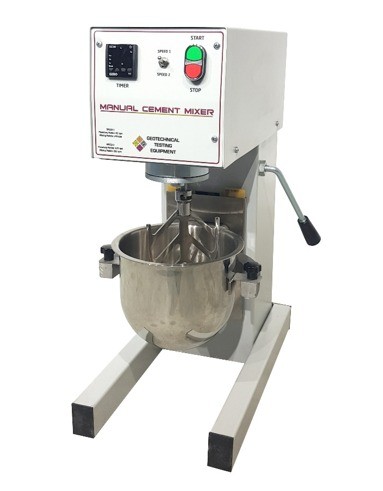

Digital mortar mixer VSLIC-C125

short info

A robust device for the efficient mixing of cement mortars, this mixer is a table mounted unit with planetary mixing action and a bowl and beater that are easily fitted and removed. The front grill, when opened, automatically stops the machine for operator protection conforming to CE requirements.

Standard

IS:10890, IS-4031, IS:1727 and EN-196-3

Model

VSLIC-C125

Origin

Indian

Make/ OEM

VERTEX

Brochure

DOWNLOAD

get a quote

  • Description

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New
    WORKING PRINCIPAL

OVERVIEW

A robust device for the efficient mixing of cement mortars, this mixer is a table mounted unit with planetary mixing action and a bowl and beater that are easily fitted and removed. The front grill, when opened, automatically stops the machine for operator protection conforming to CE requirements.

The machine is supplied complete with bowl and stainless steel beater conforming to Standards.

The machine operates with a dedicated and easy to use display and keyboard control. Either Standard speeds or user defined speeds can be easily selected (also adjustable during mixing).

The machine can be supplied, on request, complete with a sand open-type hopper. See accessories.

Product Overview

  1. Name of Equipment –           Digital Mortar Mixer
  2. Capacity –                                5 Liter
  3. Application –                          To prepare the cement mortar mix with

Automatic mixing procedure in   accordance with IS:10890, IS-4031, IS:1727 and EN-196-3 for determination      of transverse, compressive strength and reactivity of materials.

Technical Specification:

Speed                                    Rotational Speed(rpm)                           Planetary speed(rpm)

Low                            140+/-5                                                        62±/-5

High Speed              285+/-10                                                      125+/-10

Features:

  1. New mixing speed control system, granting a much wider range of speed, it is possible to set the right mixing speed to avoid the formation of dust while mixing.
  2. Use defined mixing cycle.
  3. Sand dispenser
  4. Having calibrated water burette.
  5. Complete set of safety features, including emergency stop, steel safety grid and micro-switch (microprocessor control) preventing machine to be started with one bowl in position.
  6. Continually variable speed (VFD Technology).
  7. Digital mortar mixer would be calibrated by NABL accredited laboratory with valid calibration certificate.
  8. Scraper- The scraper shall consist of a semi-rigid rubber blade attached to a handle about 150mm long. The blade shall be about 75mm long and 50mm wide, and tapered to a thin edge about 1.5mm thick.
  9. All the necessary requirements should be as per IS:10890-1984, copy enclosed.

The mortar mixer should have ISI mark certification with product identification no.


Related Searches

SPECIFICATIONS

Model: VSLIC-C125

Ref: IS:10890, IS-4031, IS:1727 and EN-196-3

Product Overview

  1. Name of Equipment –           Digital Mortar Mixer
  2. Capacity –           5 Liter
  3. Application –           To prepare the cement mortar mix with

Automatic mixing procedure in   accordance with IS:10890, IS-4031, IS:1727 and EN-196-3 for determination      of transverse, compressive strength and reactivity of materials.

Technical Specification:

Speed                                    Rotational Speed(rpm)                           Planetary speed(rpm)

Low                            140+/-5                                                        62±/-5

High Speed              285+/-10                                                      125+/-10





Features:

  1. New mixing speed control system, granting a much wider range of speed, it is possible to set the right mixing speed to avoid the formation of dust while mixing.
  2. Use defined mixing cycle.
  3. Sand dispenser
  4. Having calibrated water burette.
  5. Complete set of safety features, including emergency stop, steel safety grid and micro-switch (microprocessor control) preventing machine to be started with one bowl in position.
  6. Continually variable speed (VFD Technology).
  7. Digital mortar mixer would be calibrated by NABL accredited laboratory with valid calibration certificate.
  8. Scraper- The scraper shall consist of a semi-rigid rubber blade attached to a handle about 150mm long. The blade shall be about 75mm long and 50mm wide, and tapered to a thin edge about 1.5mm thick.
  9. All the necessary requirements should be as per IS:10890-1984, copy enclosed.

FEATURES

Product Overview

  1. Name of Equipment –           Digital Mortar Mixer
  2. Capacity –                                5 Liter
  3. Application –                          To prepare the cement mortar mix with

Automatic mixing procedure in   accordance with IS:10890, IS-4031, IS:1727 and EN-196-3 for determination      of transverse, compressive strength and reactivity of materials.

Technical Specification:

Speed                                    Rotational Speed(rpm)                           Planetary speed(rpm)

Low                            140+/-5                                                        62±/-5

High Speed              285+/-10                                                      125+/-10

Features:

  1. New mixing speed control system, granting a much wider range of speed, it is possible to set the right mixing speed to avoid the formation of dust while mixing.
  2. Use defined mixing cycle.
  3. Sand dispenser
  4. Having calibrated water burette.
  5. Complete set of safety features, including emergency stop, steel safety grid and micro-switch (microprocessor control) preventing machine to be started with one bowl in position.
  6. Continually variable speed (VFD Technology).
  7. Digital mortar mixer would be calibrated by NABL accredited laboratory with valid calibration certificate.
  8. Scraper- The scraper shall consist of a semi-rigid rubber blade attached to a handle about 150mm long. The blade shall be about 75mm long and 50mm wide, and tapered to a thin edge about 1.5mm thick.
  9. All the necessary requirements should be as per IS:10890-1984, copy enclosed.

The mortar mixer should have ISI mark certification with product identification no.
