Concrete Permeability-Three Cell is used to determine the depth of penetration of water under pressure in the concrete specimens. The test is performed clamping the specimen – cubic, cylindrical or prismatic of the length of the edge, or diameter not less than 150 mm – between two flanges with special circular gaskets.

Standard

IS : 3085-1965, DIN 1048

Model

VSLIC-C256

Origin

Indian

Make/ OEM

VERTEX

  • Description

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New
    WORKING PRINCIPAL

OVERVIEW

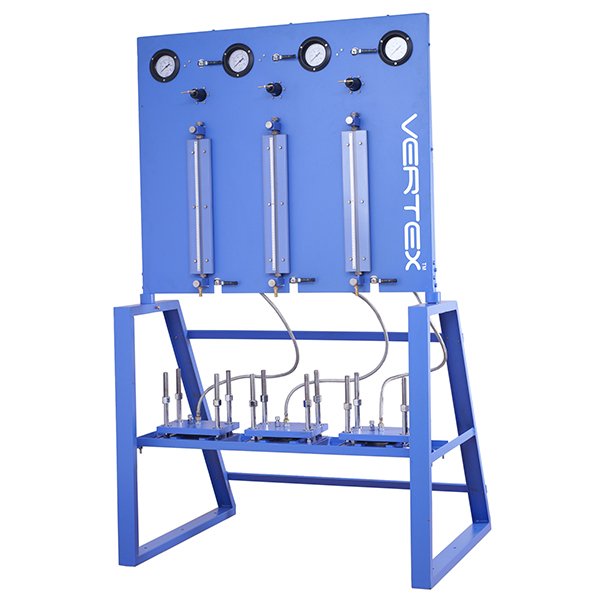

It consists of three sets mounted on a single control panel for testing independently three specimens of 150 mm dia x 150 mm high.

The equipment consists of the following :-

  • Three permeability cells for 150 mm dia specimens. Each cell consists of a metal cylinder with a ledge at the bottom
    and flange at the top, one removable cover plate and a funnel. Made of gun metal.
  • A control panel with three independent control circuits for three permeability cells, each control circuits consisting of a water reservoir, graduated gauge, glass tube, air inlet valve, pressure regulator, pressure gauge 0-15 kg/sq. cm., an air bleed valve, a drain cock for water reservoir and a shut-off valve for the permeability cell. A common air inlet for the three units is provided for connecting to the air compressor.
  • Three glass/plastic bottle to collect the percolated water are also supplied.



SPECIFICATIONS

Cement Mortar and Concrete Permeability Apparatus (100 mm dia single Cell model)

Suitable for determination of permeability of cement mortar and concrete specimens of 100 mm diameter and 100 mm high, either cast in the laboratory or obtained by cutting out cores from existing structure.

The equipment comprises the following :-

  • One permeability cell for 100 mm dia specimens consisting of a metal cylinder with a ledge at the bottom and flange at the top, one removable cover plate and a funnel. An air bleed valve is provided on the cover plate. Made of gun metal.
  • A control panel fitted with a water reservoir, graduated glass tube, an inlet valve, pressure regulator, pressure gauge 0-15 kg sq.cm, an air bleed valve, a drain cock for water reservoir and a shut-off valve for the permeability cell.
  • One glass bottle to collect the percolated water

Cement Mortar and Concrete Permeability Apparatus (100 mm dia Single Cell Model)

but with cell made of steel.

Cement Mortar and Concrete Permeability Apparatus (100 mm dia Three Cell Model)

It consists of three sets as of HC49.25, mounted on a single control panel for testing independently three specimens of 100 mm dia x 100 mm high.

The equipment consists of the following :-

  • Three permeability cells for 100 mm dia specimens. Each cell consists of a metal cylinder with a ledge at the bottom and flange at the top, one removable cover plate and a funnel. Made of gun metal.
  • A control panel with three independent control circuits for three permeability cells, each control circuit consisting of a water reservoir, graduated gauge, glass tube, air inlet valve, pressure regulator, pressure gauge 0-15 kg/sq. cm, an air bleed valve, a drain cock for water reservoirand a shut-off valve for the permeability cell. A common air inlet for the three units is provided for connecting to the air compressor.
  • One glass/plastic bottle to collect the percolated water are also supplied.

Cement Mortar and Concrete Permeability Apparatus (100 mm dia Three Cell Model)

(100 mm dia Three Cell Model) IS : 3085-1965 but with cells made of steel.

Cement Mortar and Concrete Permeability Apparatus (150 mm dia Single Cell Model)

The apparatus is similar but provided with a permeability cell for 150 mm dia x 150 mm high specimen.

The equipment comprises the following :-

  • One Permeability Cell for 150 mm dia specimens consisting of a metal cylinder with a ledge at the bottom and flange at the top, one removable cover plate and a funnel. An air bleed valve is provided on the cover plate. Made of gun metal.
  • A control panel fitted with a water reservoir, graduated glass tube, an inlet valve, pressure regulator, pressure gauge 0-15 kg/sq cm, an air bleed valve, a drain cock for water reservoir and a shut-off valve for the permeability cell.
  • One glass bottle to collect the percolated water.

Cement Mortar and Concrete Permeability Apparatus (150 mm dia Single Cell Model)

but with steel cell.

Cement Mortar and Concrete Permeability Apparatus (150 mm dia Three Cell Model)

It consists of three sets, mounted on a single control panel for testing independently three specimens of 150 mm dia x 150 mm high. The equipment consists of the following :-

  • Three permeability cells for 150 mm dia specimens. Each cell consists of a metal cylinder with a ledge at the bottomand flange at the top, one removable cover plate and a funnel. Made of gun metal.
  • A control panel with three independent control circuits for three permeability cells, each control circuits consisting of a water reservoir, graduated gauge, glass tube, air inlet valve, pressure regulator, pressure gauge 0-15 kg/sq. cm., an air bleed valve, a drain cock for water reservoir and a shut-off valve for the permeability cell. A common air inlet for the three units is provided for connecting to the air compressor.
  • Three glass/plastic bottle to collect the percolated water are also supplied.

Cement Mortar and Concrete Permeability Apparatus (150 mm dia, Three Cell Model)

but with steel cells.

Cement Mortar and Concrete Permeability Apparatus (300 mm dia, Single Cell Model)

The apparatus is similar to but provided with a permeability cell for 300 mm dia x 300 mm high specimen.

The equipment comprise the following :-

  • One permeability cell consisting of a metal cylinder with a ledge at the bottom and flange at the top, one removable cover plate and a funnel.
  • An air bleed valve is provided on the cover plate. Made of gun metal.A control panel fitted with a water reservoir, graduated glass tube, an inlet valve, pressure regulator, pressure gauge 0-15 kf/sq. cm an air bleed valve, a drain cock for water reservoir and a shut-off valve for the permeability cell.
  • One glass bottle to collect the percolated water.

Cement Mortar and Concrete Permeability Apparatus (300 mm dia, Single Cell Model )

but with steel cell.

Cement Mortar and Concrete Permeability Apparatus (300 mm dia, Three Cell Model )

It consists of three sets, mounted on a single control panel for testing independently three specimens of 300 mm dia x 300 mm high.

The equipment consists of the following :-

  • Three permeability cells for 300 mm dia specimens.Each cell consists of a metal cylinder with a ledge at the bottom and flange at the top, one removable cover plate and a funnel. Made of gun metal.
  • a control panel with three independent control circuits for three permeability cells, each control circuit consisting of a water reservoir, graduated gauge, glass tube, air inlet valve, pressure regulator, pressure gauge 0-15 kg/sq.cm, an air bleed valve, a drain cock for water reservoir and a shut-off valve for the permeability cell. A common air inlet for the three units.
  • Three glass bottles to collect the percolated water are also supplied.

Cement Mortar and Concrete Permeability Apparatus (300 mm dia Three Cell Model)

but with steel cells.

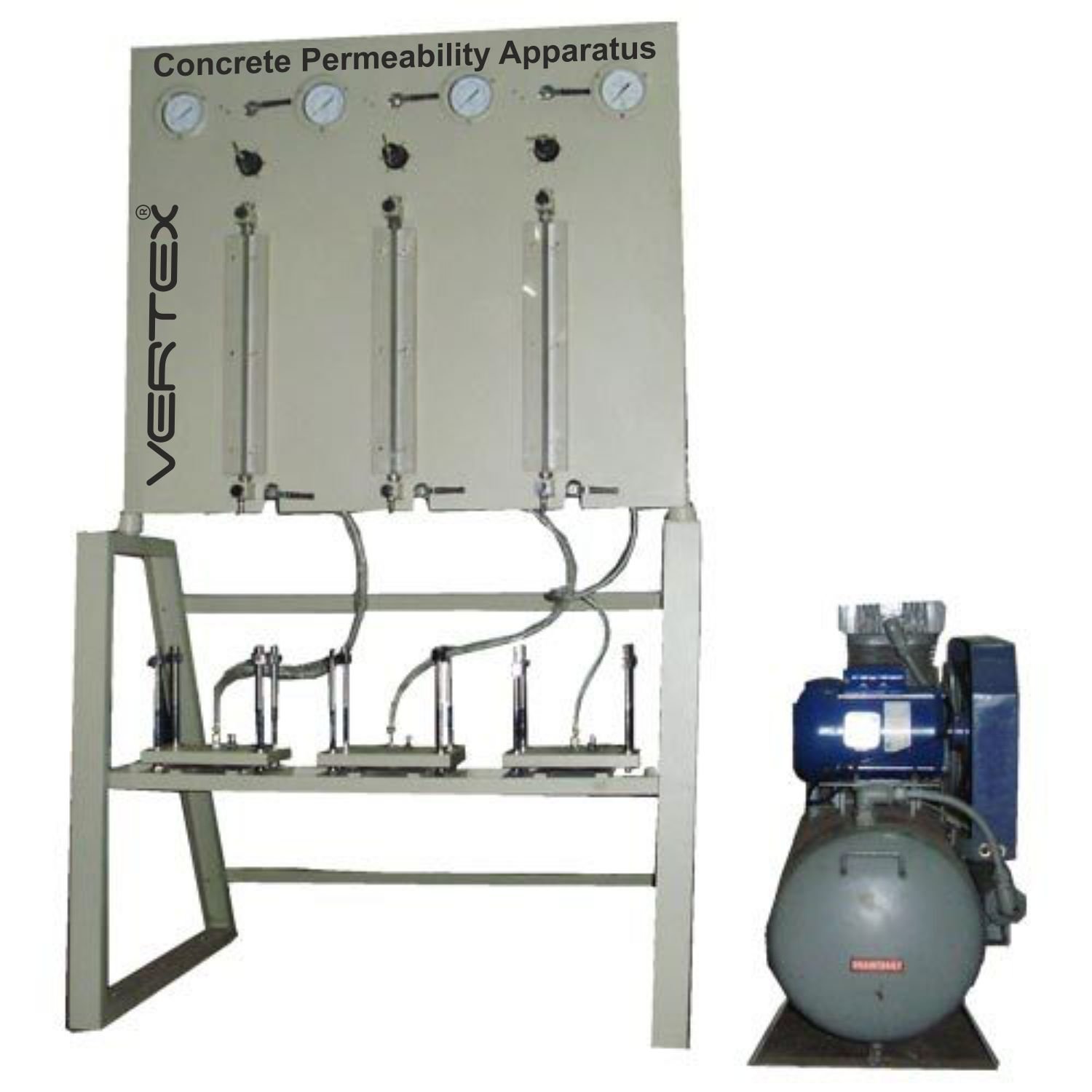

Air Compressor

Cement Mortar and Concrete permeability Apparatus.

It is a two stage compressor for developing high pressure upto 20 kg/sq.cm. It has a large air tank. Complete with ON-OFF switch, a pressure switch, safety valve, pressure gauge and one pressure outlet valve. Suitable for operation on 440 v, 3 phase, 50 Hz supply. Other electrical specifications available on request.

Note :

Air compressor required for the application of pressure. Cement Mortar and concrete permeability apparatus is not supplied with the apparatus but can be had at extra cost as an accessory.

FEATURES

Features:

The concrete permeability apparatus comprises of a mild steel cell of Square/Round cross-section mounted on a stand and a pressure chamber is connected to the cell through copper tubing and T-connector mounted on the stand with sleeve packed valve and rubber hose pipe with end connections. The cell assembly consists of one base plate and one top plate connected to nozzles.

The pressure chamber is fitted with a pressure regulator which helps in regulating the pressure from 0-15kg/cm sq. Gauge is for indicating the pressure in the cell. A foot pump and a pressure tube is supplied to develop pressure in the chamber.

The apparatus is supplied with a measuring cylinder 500cc to measure percolated quantity to water.

Note:

  1.  Pressure can also be applied; by a pressure airline or by a compressor (2 HP capacity), can be supplied at an extra cost.
  2.  Model available for 6, 9, 12, 18 cells permeability also.
