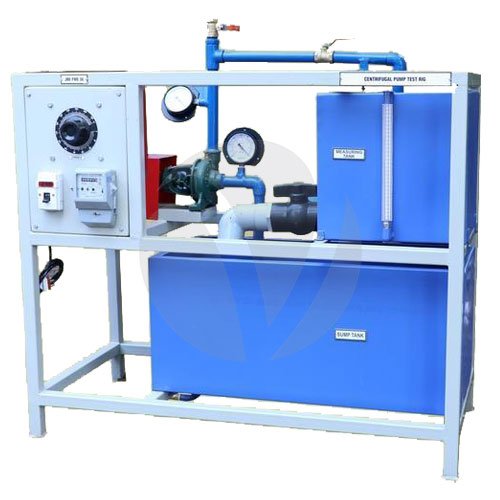

The unit consists of a centrifugal pump provided with variable speed motor. The pump is provided with a vacuum gauge at suction and a pressure gauge on discharge pipe. The pump is provided with a variable speed drive & gate valve at discharge which facilitates estimation of pump performance at various speeds & discharge heads. Power input to motor is measure with energy meter.

[wpdm_package id='6570']
[vcex_divider color=”#eaeaea”]

The Centrifugal Pump Test Rig apparatus consists of two pipelines emerging out from a common manifold. One pipe line contains a Venturimeter and the other contains an Orifice. The pressure tapings from the Venturimeter and orifice meter are taken to a differential manometer to measure pressure difference. The Venturimeter and Orificemeter are connected in parallel and any one of them can be put in operation by operating valves provided at the downstream. The flow can also be regulated by these valves. The set-up can be connected to Hydraulic Bench with flexible pipeline.

Specification:

  • Pressure Guage for measurement discharge head.
  • Control Valve to calculate input power.
  • Centrifugal pump:1hp, with variable speed D. C. motor & speed controller
  • Sump tank: 900 X 400 X 400 mm.
  • Measuring Tank: 400 X 400 X 400 mm.Energy meter for motor input measurement.
  • Pressure & vacuum gauge for measurement of head.
  • Stopwatch.
  • The assembly of pump & control is mounted on the sump tank.1 Hp D.C. motor variable speed type.
  • Services Required: Floor space of 1 m. x 1 m.230 V., 15 A, A. C. supply with earthing connection.

Range of Experiment:

    • To determine the efficiency of pump.
    • To study the following characteristics of different RPM.
    • Discharge V/s Speed
    • Discharge V/s Total head
    • Discharge V/s Input power
    • Discharge V/s Output power
    • Discharge V/s Efficiency of pump
    • Discharge V/s Overall efficiency

    Specification:

          • Pressure Guage for measurement discharge head.
          • Control Valve to calculate input power.
          • Centrifugal pump:1hp, with variable speed D. C. motor & speed controller
          • Sump tank: 900 X 400 X 400 mm.
          • Measuring Tank: 400 X 400 X 400 mm.Energy meter for motor input measurement.
          • Pressure & vacuum gauge for measurement of head.
          • Stopwatch.
          • The assembly of pump & control is mounted on the sump tank.1 Hp D.C. motor variable speed type.
          • Services Required: Floor space of 1 m. x 1 m.230 V., 15 A, A. C. supply with earthing connection.

    The whole setup is self-contained water re-circulating unit well designed and arranged in a good quality painted structure.
