Casagrande Test Apparatus or Liquid Limit Apparatus in mechanical form is known as Liquid Limit Method and has been in use for soil mechanics for a number of years. The Liquid Limit data of soils is useful to correlate mechanical properties of soil, such as compressibility and lower shear strength.

Standard

IS : 2720 (part 5), IS : 9259, BS : 1377

Model

VSLIC-S164

Origin

Indian

Make/ OEM

VERTEX

  • Description

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New
    WORKING PRINCIPAL

OVERVIEW

Casagrande method in mechanical form is known as liquid limit method and has been in use for soil mechanics for a number of decades. The liquid limit data of soils is useful to correlate mechanical properties of soil, such as compressibility and lower shear strength. Liquid limit is the water content at which soil passes from zero strength to an infinite strength, hence the true value of liquid limit cannot be determined.

For determination purpose liquid limit is that water content at which a part of soil, cut by a groove of standard dimensions, will flow together for a distance of 1.25cm under an impact of 25 blows in a standard liquid limit apparatus. The soil at the water content has some strength which is about 0.17N/cm. sq. (17gms/sq.cm.) .

At this water content soil just passes from liquid state to plastic state.

It consists on a brass cup held on an adjustable bracket.

The cup can be adjusted for a fall of 1 cm and can be raised an dropped on a rubber base of standard hardness by cam action. Complete with one Casagrande grooving tool, one ASTM grooving tool and a height gauge block. A counter to register the number of blows



SPECIFICATIONS

Mechanical Method known as the Casagrande Method has been a standardized test in Soil Mechanics for many years.

  • High Quality of design ensures consistency of results
  • Satisfies International Standards
  • A motorized model with an integral blow counter is also available.

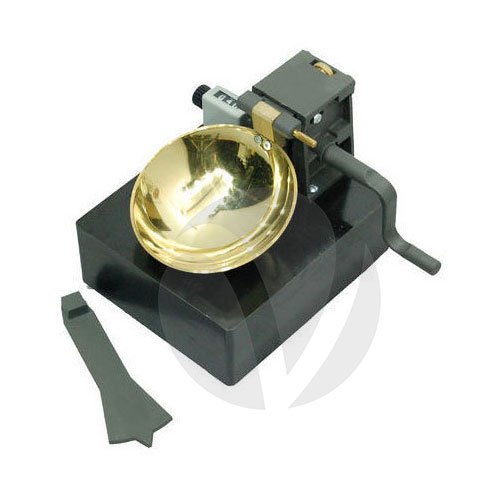

The Liquid Device consists of a hard rubber base carrying a sliding carriage assembly to which a brass cup is hinged. The cup is raised and allowed to fall through a height of 1 cm on the hard rubber base, with the help of a lead screw provided at the back of the sliding carriage.

Suitable for operation on 220V, 50Hz, Single Phase, AC Supply

FEATURES

The equipment Consist to the following replaceable parts:

  • VSLIC-S164A       : Counter.
  • VSLIC-S164B        : Bowl.
  • VSLIC-S164C        : Casagrande Grooving Tool Type-A.
  • VSLIC-S164D        : Gauge Block for Liquid Limit Device.

Ordering Information:

  • VSLIC-S164E         : Liquid Limit Device with Counter Manually operated
