quick info

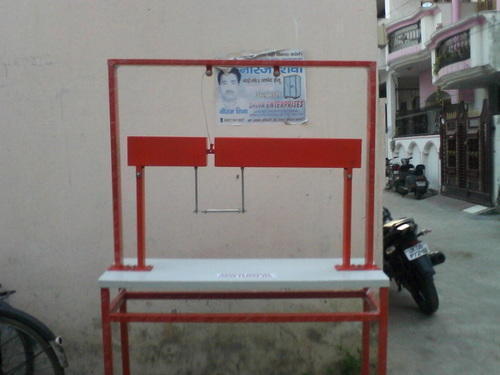

This demonstration unit facilitates the experimental investigation of the progression of the bending moment and shearing forces on a bar subject to point loads. In addition, the section principle commonly used in mechanics can be demonstrated. Due to the use of a low friction joint with two degrees of freedom at 1/3 of the span and two dynamometers, the measurements can be recorded directly from the bar.

Country Origin

Indian

Make / OEM

VERTEX

Model

VSLIC-SA18

Warranty

This Warranty covers the defects resulting from defective parts, materials or manufacturing, if such defects are revealed during the period of 12 months since the date of purchase.


All pictures shown are for illustration purpose only. actual product may vary due to product enhancement.

  • OVERVIEW

  • SPECIFICATIONS

  • FEATURES

  • VIDEO

  • DIMENSION

OVERVIEW

This demonstration unit facilitates the experimental investigation of the progression of the bending moment and shearing forces on a bar subject to point loads. In addition, the section principle commonly used in mechanics can be demonstrated. Due to the use of a low friction joint with two degrees of freedom at 1/3 of the span and two dynamometers, the measurements can be recorded directly from the bar. The deflection of the bar as result of the travel of the dynamometers and the horizontal alignment can be compensated and regulated using two adjustment bolts. The bar is loaded with graduated sets of weights that can be attached at any point on the bar

SPECIFICATIONS

This demonstration unit facilitates the experimental investigation of the progression of the bending moment and shearing forces on a bar subject to point loads. In addition, the section principle commonly used in mechanics can be demonstrated. Due to the use of a low friction joint with two degrees of freedom at 1/3 of the span and two dynamometers, the measurements can be recorded directly from the bar. The deflection of the bar as result of the travel of the dynamometers and the horizontal alignment can be compensated and regulated using two adjustment bolts. The bar is loaded with graduated sets of weights that can be attached at any point on the bar

FEATURES

This demonstration unit facilitates the experimental investigation of the progression of the bending moment and shearing forces on a bar subject to point loads. In addition, the section principle commonly used in mechanics can be demonstrated. Due to the use of a low friction joint with two degrees of freedom at 1/3 of the span and two dynamometers, the measurements can be recorded directly from the bar. The deflection of the bar as result of the travel of the dynamometers and the horizontal alignment can be compensated and regulated using two adjustment bolts. The bar is loaded with graduated sets of weights that can be attached at any point on the bar

PRODUCT VIDEO

DIMENSION

Length (Inch) Width (Inch) Height (Inch)
