short info

VERTEX Manufacturer of a wide range of products which include 6 cell Rapid Chloride Permeability Test Apparatus, 3 Cell Automatic Rapid Chloride Penetration Test Apparatus, 4 Cell Rapid Chloride Permeability Test Apparatus, Digital 3 Cell Rapid Chloride Penetration Test Apparatus, 8 Cell RCPT Apparatus and Rapid Chloride Permeability Test Apparatus.

Model

VSLIC-C258

Origin

Indian

Make/ OEM

VERTEX

  • Description

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New
    WORKING PRINCIPAL

OVERVIEW

Introduction:

  • Concretes incorporating fly ash or silica fume are less permeable to deleterious elements and thus are more durable than conventional concretes. The Rapid Chloride-ion Permeability Test (RCPT) is designed to assess the resistance of concrete to the penetration of chloride ions, an indicator of its permeability.

General Details:

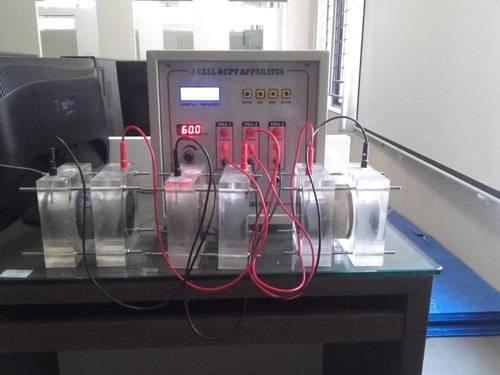

  • Each RCPT cell will be made up of transparent acrylic material of 150 * 150mm* 50mm thick as per ASTMC 1202.
  • It will hold the concrete specimen of 100mm dia 50mm thick.
  • It will be provided with rubber gasket and washers for achieving leak proof.
  • Stainless steel bolts with washers and nuts will be provided to hold the specimen rigidly.
  • The power supply will be applied to each cell through banana sockets and the current will be distributed through the brass mesh.
  • Each cell will be provided with openings in top for pouring chemicals and the temperature sensors. The openings can be closed with lids.
  • The volume of chemicals within the chamber shall be 250ml.

It includes the following items:

  • Constant voltage power supply with 3 channels.
  • Plexi-glass chambers – 3 pairs.
  • 250 mm vacuum Desiccator.
  • Vacuum pump
  • Moisture trap
  • Moulds for cylindrical specimens – 3 nos.
  • Consumables – good for 1 doz. Tests
  • Sealant Silicon sealer + brush



SPECIFICATIONS

Product Description

Voltage :60 volt DC
Channels :3
Certificate : NABL
Testing parameter: strength
Input voltage :220 – 240 volt AC
Frequency: 50 Hz
Testing specimen size: 100 mmx50mm
Test Time period : 6 hrs

FEATURES

Product Description

Voltage :60 volt DC
Channels :3
Certificate : NABL
Testing parameter: strength
Input voltage :220 – 240 volt AC
Frequency: 50 Hz
Testing specimen size: 100 mmx50mm
Test Time period : 6 hrs

PRODUCT VIDEO

WORKING PRINCIPALNew
